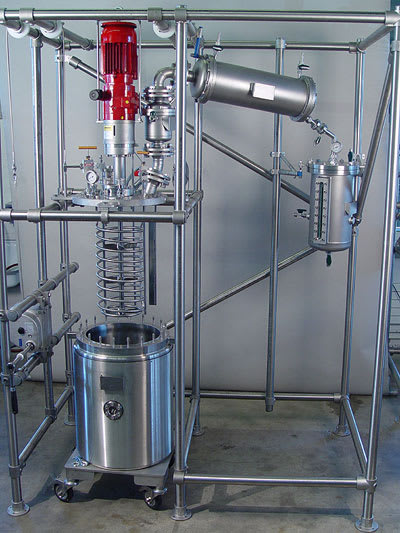

Hydrogenation plant with 100 liter pressure reactor system

Batch pressure reactor system for hydrogenation. The vessel is equipped with heating jacket and internal emergency rapid cooling coil to safely control exothermic reaction. The gas sparging tube allows efficient gas dispersion into the liquid phase. With the sight glass the process can be visually observed and inspected. The distilled vapors are stripped, condensed and collected in the receiver vessel.
