| Volumen del reactor: | 0.5 a 20.0 litros |
| Presión: | -1 (VT) a +60 / 200 bar |
| Temperatura: | -20 °C a +250 °C |
| Material: | acero inoxidable, Hastelloy®, acero vitrificado |
Disponibles otros materiales, presiones & temperaturas.

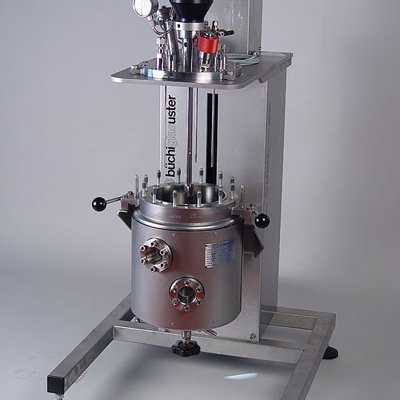

Este sistema de reactor a presión multipropósito está diseñado para el uso de vasos a presión de acero grandes. El sistema hidráulico que permite subir, bajar o bascular el vaso, hace muy fácil la apertura, cierre o limpieza del reactor. Las características de seguridad garantizan reacciones seguras bajo presión.

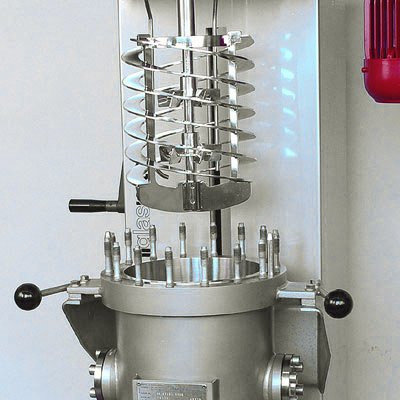

Los reactores de acero o de Hastelloy® aseguran alta resistencia a los ácidos.También es posible el control visual del proceso con los vasos de acero con mirillas. Varios acoplamientos magnéticos de bajo a alto par de torsión aseguran la eficiente mezcla y agitación de medios de proceso desde baja a alta viscosidad así como una excelente transferencia térmica.
La configuración modular del sistema kiloclave® permite su cambio o actualización para nuevas tareas en cualquier momento.
Un amplio surtido de accesorios para la adición de líquidos / sólidos / gases, un dispositivo de cierre rápido, y muchos otros como cestas de catalizador, etc. está disponible – hable con nosotros para definir la configuración adecuada a sus necesidades específicas.
Metal
0.5, 1.0, 1.5, 2.0, 3.0, 5.0,
10.0, 20.0 litros
250°C
60 bar (20 bar 10.0 litros, 10 bar 20.0 litros)
Metal / Vidrio borosilicato 3.3
1.0, 1.5, 2.0, 3.0, 5.0, 10.0 20.0 litros
250°C
60 bar (20 bar 10.0 litros, 10 bar 20.0 litros)
Metal
0.5, 1.0, 1.5, 2.0, 3.0, 5.0, 10.0, 20.0 litros
250°C
60 bar (20 bar 10.0 litros, 10 bar 20.0 litros)
Metal / Vidrio borosilicato 3.3
0.5, 1.0, 1.5, 2.0, 3.0, 5.0, 10.0, 20.0 litros
250°C
60 bar (20 bar 10.0 litros, 10 bar 20.0 litros)
Controlador PID de temperatura
para vasos tipo 3E y 4E
"For carbonization, we have chosen the Buchi kiloclave Type 3E with a Cyclone 300 drive as stirrer agitator. The design of the reactor stand allows easy filling and emptying by single person. The individual components can be cleaned easily. Two stainless steel vessels with 0.5 liter and 5 liter are available as reactor vessels. For special reaction experiments in the acidic range by adding organic or mineral acids, a 1 liter reactor made of Hastelloy® is used."
Gabriel Gerner, Research assistant, Zurich University of Applied Sciences ZHAW, Wädenswil
Read here the case study Sustainable coal production in Buchi kiloclave type 3E.
"Our emulsion polymerization process is very difficult to simulate at the laboratory scale. The process runs at moderately high temperature and elevated pressure. High-shear agitation is critical to product quality. We have struggled to identify a pilot reactor that provided just what we need. The available systems either cannot achieve the elevated pressure or are designed for extreme pressure, making them extremely bulky and costly. We had begun enlisting custom equipment manufacturers until we came across the Buchi kiloclave system, which was a good fit for us. With some simple, cost effective, customization, the kiloclave has proven to be the perfect pilot reactor for our process optimization."
Mark G. Stevens, PhD., Sr. Manager, Engineering Design and Development, Dentsply Sirona, Restoratives
“Our Büchiglas equipment allows us to conduct highly corrosive pulping reactions at elevated temperatures and high pressures, safely and reliably. Additionally, Büchiglas has been offering fast, friendly and solution-oriented customer service, which is vital for frictionless progress towards project deadlines.”
EMPA Dübendorf, Dr. Gilberto De Freitas Siqueira, Mr. Aaron Schneider
Read here more about the case study Advancing Eco-Fiber Technology with the Bio-LUSH Project.
