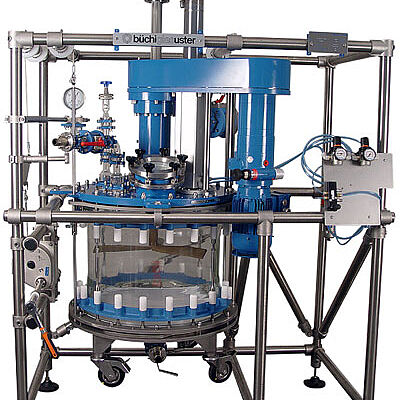

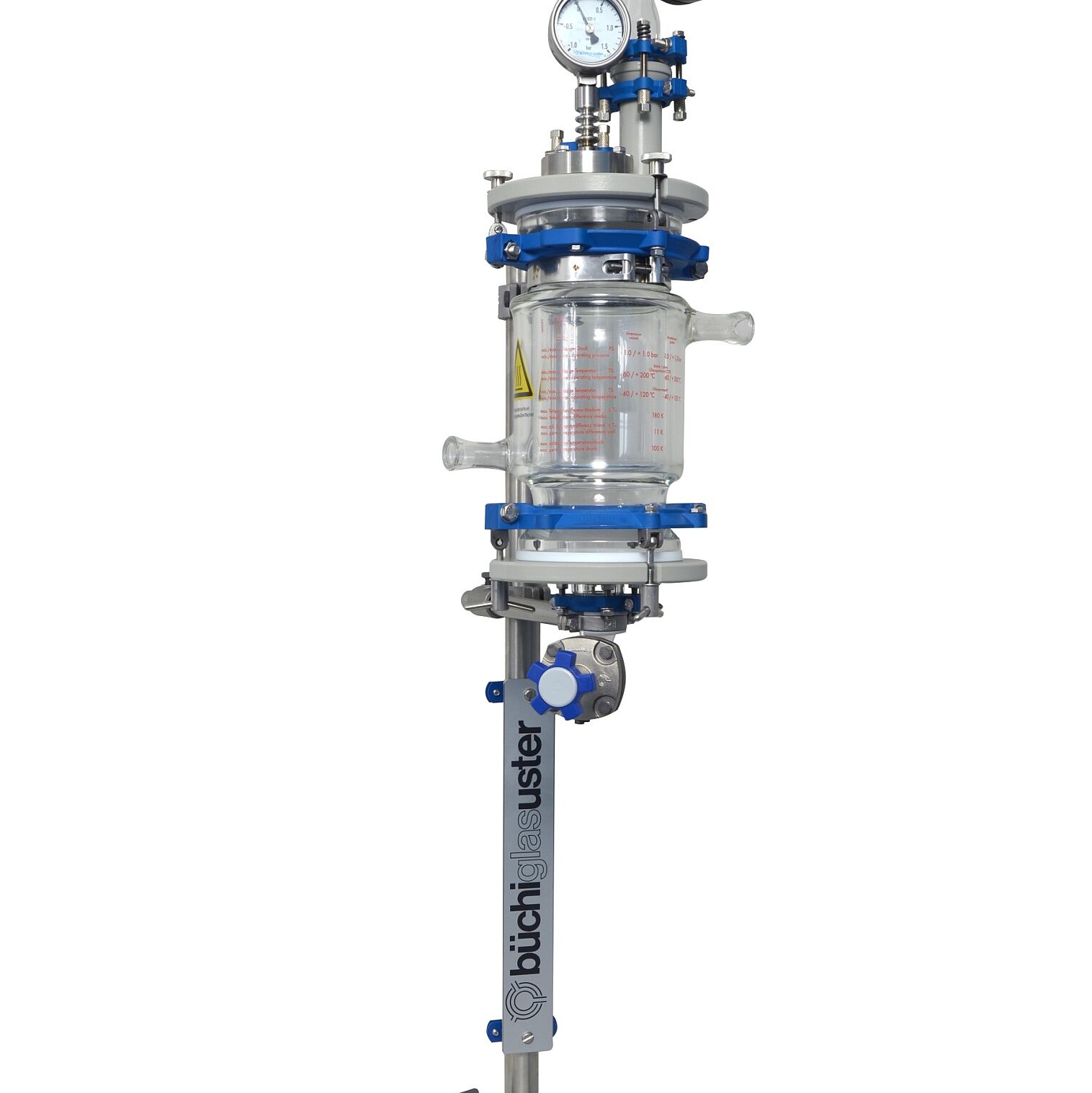

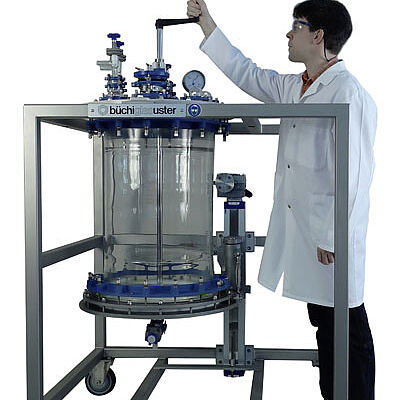

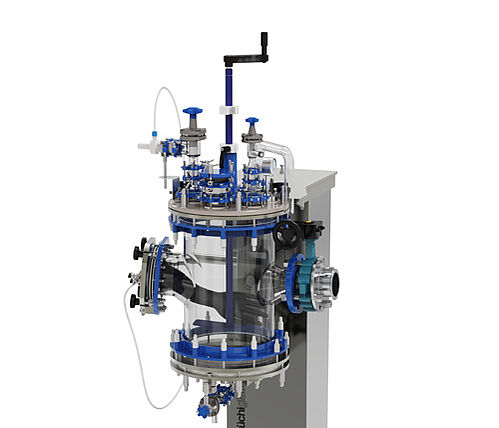

用于反应釜和中试车间的Nutsche过滤器

50升真空过滤器 50升真空过滤器
Filtration vessel:10, 30, 50, 100, 140, 300 liter
Pressure:-1.0 (FV) to +0.5 bar
Temperature:-60 °C to +150 °C (200 °C)
Filter cloth:Mesh size 8 to 115 micron
Material: Borosilicate glass 3.3, PTFE, PFA, ETF



玻璃釜体: 10、30、50、100、140、300 L
压力: -1.0 (FV) ~ +0.5 bar
温度: -60 °C ~ +150 °C (200 °C)
滤布:筛孔尺寸 8~115 微米
材质: 硼硅玻璃3.3、搪玻璃、PTFE、PFA、ETFE

可提供"无尘室"安装和其他材料,以满足您工艺的具体要求。

Buchi nutsche过滤器可与我们的反应釜轻松组合,用于合成后的固液分离。釜内使用的惰性材料允许在全真空完全密封(büchiflex)的玻璃反应体系内安全地处理范围广泛的溶剂和酸性物质。

浆料转移至过滤器,固体成分被滤布截留形成滤饼,而滤液则通过底板上的卸料阀流出。

当滤液变小量时过滤过程结束,可通过旋转高低可调的搅拌器来挤压滤饼缩短过滤过程。

打开盖子并降低固定于升降装置上的玻璃过滤容器可方便地移除料浆,该升降装置也可用于降低底板清洗和更换滤布。

About the nutsche filter

A clean-room setup and other materials are available to meet your specific process requirements.

Buchi nutsche filters can easily be combined with our reactors for solid / liquid separation after the synthesis. The inert materials allow safe processing in an inert atmosphere of a wide range of solvents and acids in a completely sealed (buchiflex) glass system under full vacuum.

The slurry is transferred into the filter. The solid content in the slurry is held back by the filter cloth forming a filter cake, while the filtrate runs away to the outlet valve in the bottom plate. The filtering stage ends when the filtrate is of small quantity, which can be shortened by squeezing the filter cake by turning the height adjustable stirrer.

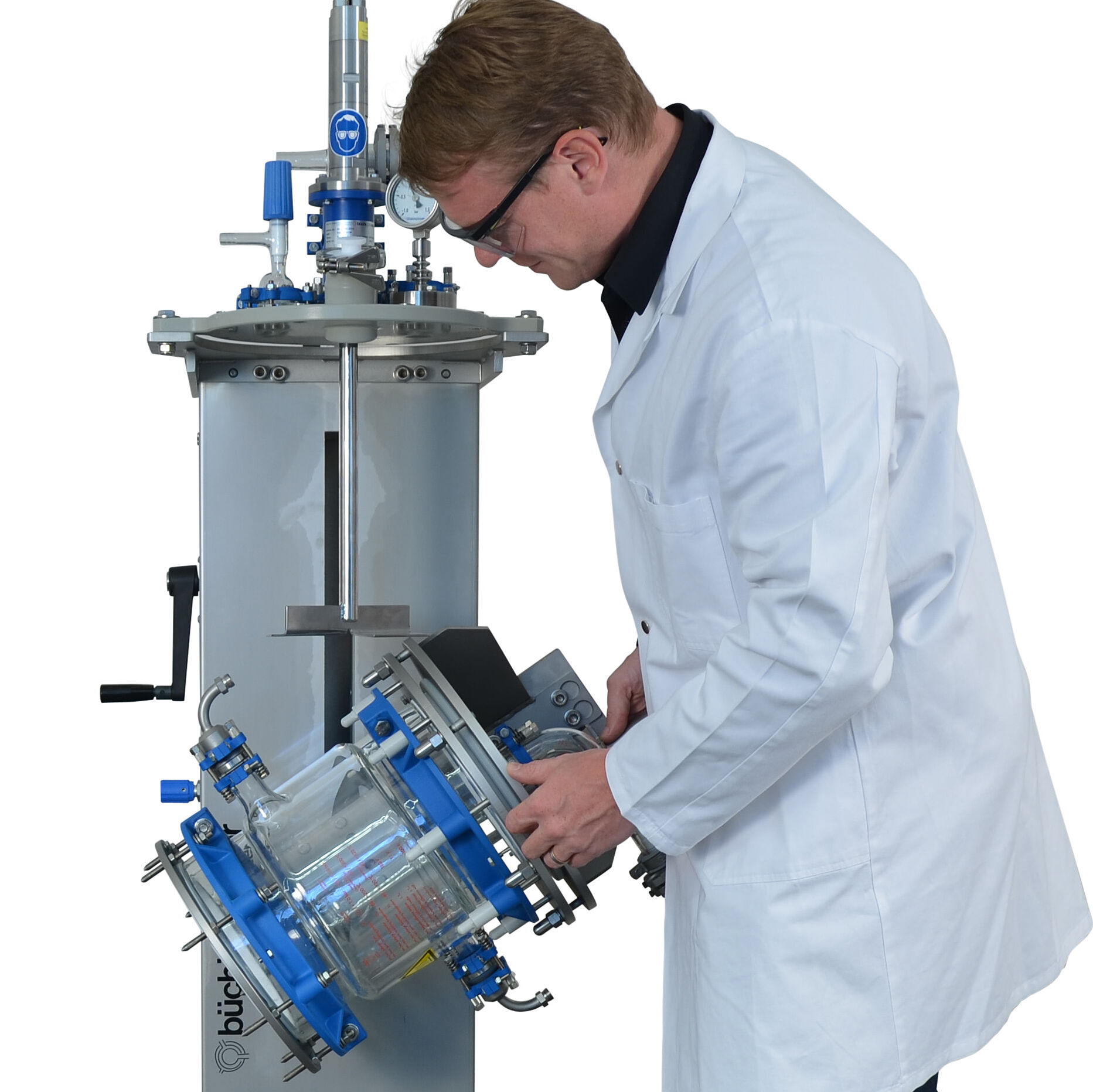

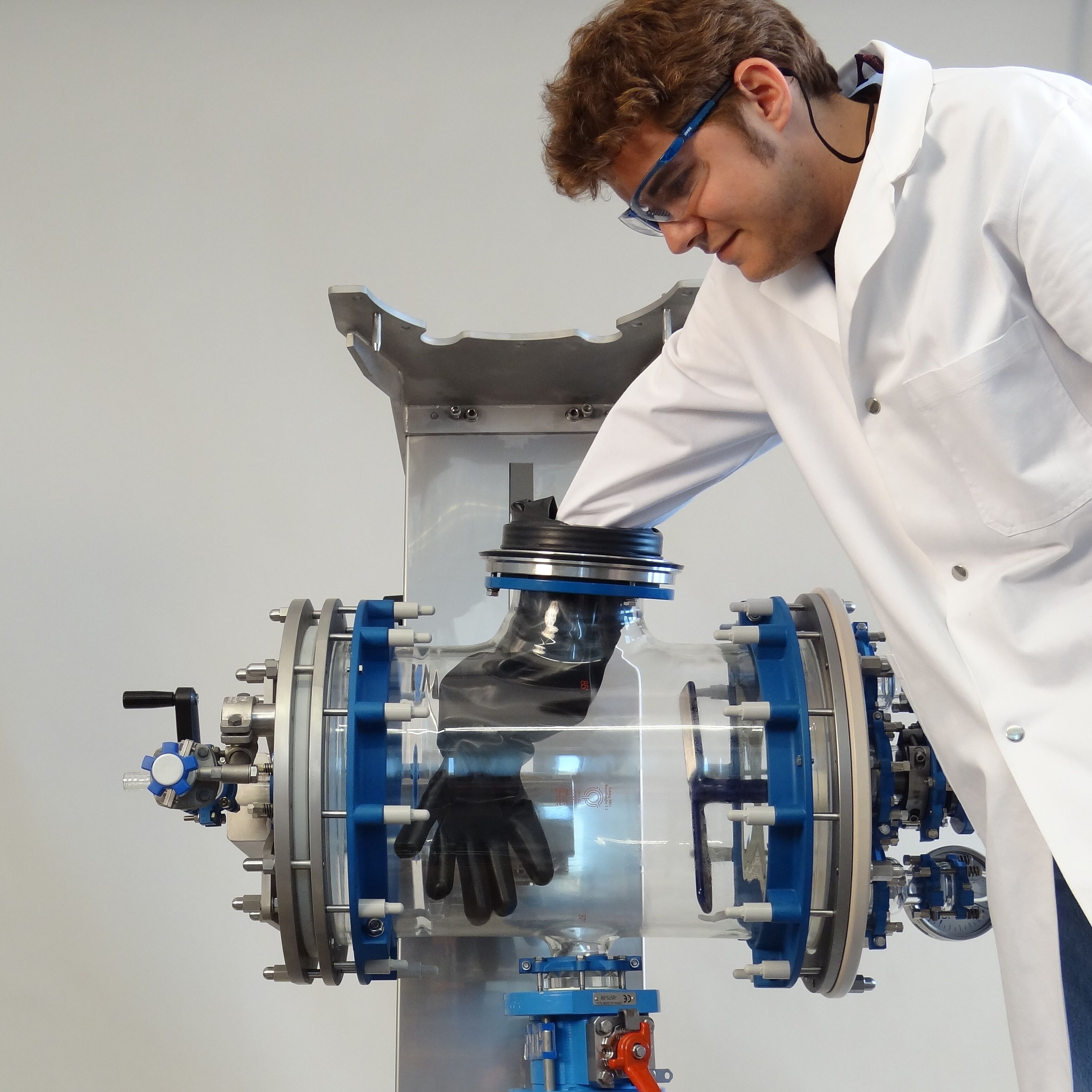

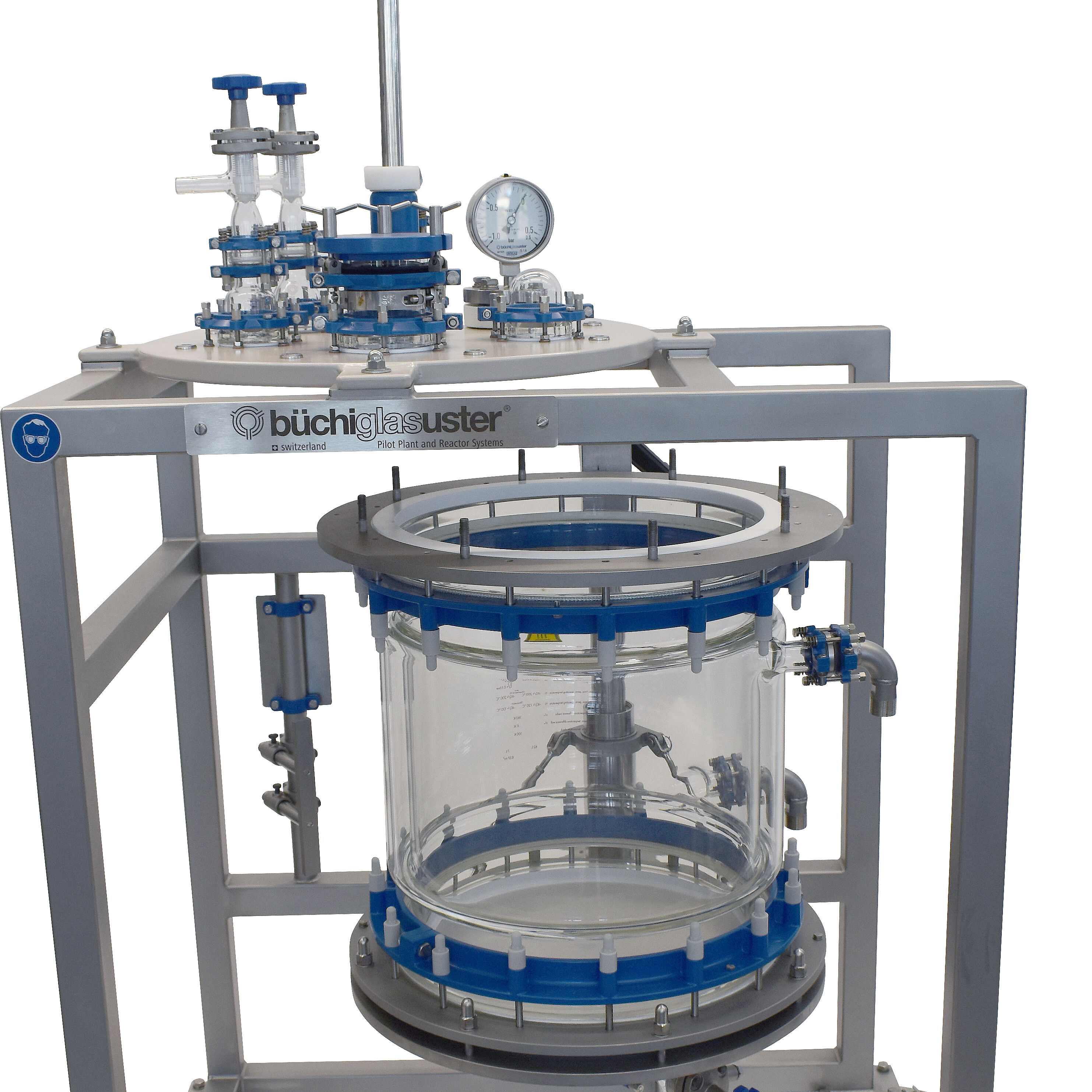

The cake is removed easily from the top by opening the cover and lowering the glass filter vessel, which is attached to the lifting device. The same lifting device is used to lower the bottom for accessing the filter cloth for cleaning and exchange.



标准组件

  • 玻璃过滤容器
  • ETFE涂层盖板,配有用于加浆料,氮气等的开口
  • 配有滤布的PTFE底板
  • 配有升降装置的可移动不锈钢支架
  • 强耐腐蚀
  • 符合FDA
  • cGMP认证
  • 齐全的各类认证文件

标准选件

  • 不锈钢,哈氏合金或惰性涂层的手动搅拌器
  • 防爆搅拌驱动器,可调速
  • 可在线清洗
  • 加热夹套(干燥)
  • IQ/OQ/PQ验证
