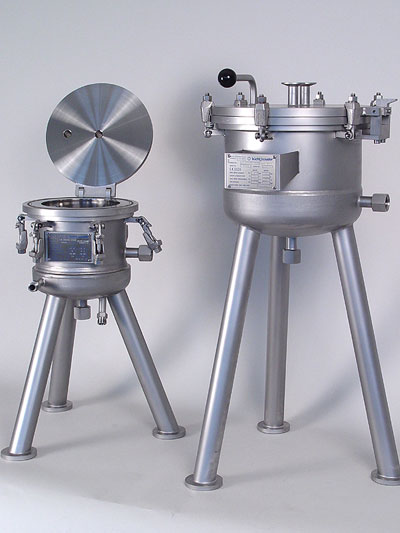

Pressure filters for process filtration

Metal vessel: 5, 10, 20 liter
Pressure: -1.0 (FV) to +6.0 bar
Temperature: -10 °C to +200 °C
Filter: sintered 8 to 115 micron
Material: stainless steel, Hastelloy® C22


These robust and compact pressure filters are designed for filtration, pressurizing the vessel with up to 6 bar pressure. They offer a removable filter basket, a quick opening / closing system and a perfect fit to Buchi pressure reactors, allowing for an easy operation. The filter vessel is jacketed and can be temperature controlled by a circulator. Process connections are standard Tri-Clamp configuration.

The pressure filters are available in various sizes and filter types as well as with an optional heating jacket for temperature-controlled filtration.

Examples

Typical applications

  • Filtration / separation
  • Drying
  • Purification
