Lab to pilot scale metal-free / inert reactors

Laboratory pressure reactor system - metal-free executions

Reactor volume: 1.0 - 20.0 liter
Pressure: -1 (FV) to + 6 bar
Temperature: -20 °C to +180 °C
Material: glass, glass-lined steel, ceramic, PFA, PEEK, PTFE


Our lab to pilot scale reactor models are available as metal-free / inert versions:

  • polyclave inert
  • versoclave inert (available only with glass-lined steel vessel)
  • kiloclave inert (available only with glass-lined steel vessel)


These multipurpose pressure reactor systems ensure high resistance against aggressive chemicals, while avoiding corrosion and contamination or side reactions with metals. They are designed for the use with either glass-lined steel pressure vessels or with glass pressure vessels.

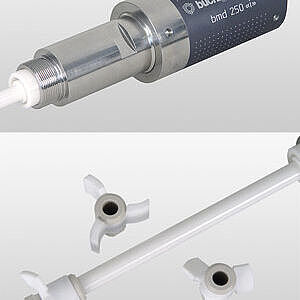

The use of high torque ceramic magnetic stirrer drive ensures efficient mixing of low to high viscosity process media as well as excellent heat transfer.

Safety features guarantee safe reactions under pressure.

The modular setup of the reactor systems allows changing or upgrading for new applications and reactions at any time. A wide range of accessories for feeding of liquids, solids and gas and others are available – ask us to define the right setup for your specific requirements.

If your process requires higher temperatures / pressures other highly corrosion resistant solutions are available (e.g. tantalum).

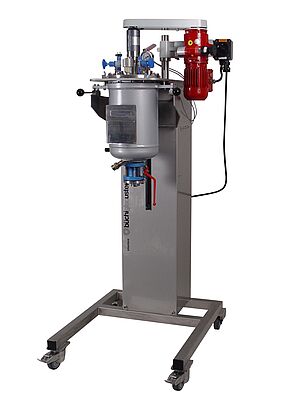

Examples of kiloclave inert

Typical applications

  • Hydrogenation reactor
  • Polymerization reactor
  • Synthesis reactor
  • Catalyst testing / evaluation
  • Catalytic reactor
  • Crystallization
  • Chemical research
  • Petrochemical research
  • Corrosion measurement
  • Upstream research
  • Biomass research
  • Biopolymer research
  • Biorefinery research
  • Biofuels research
  • Zeolite synthesis
  • Nanoparticle synthesis
  • API synthesis
  • Corrosion testing autoclave
