| Reactor volume: | 100 to 300 ml |
| Pressure: | -1 (FV) to + 150 bar |
| Temperature: | - 20 °C to 300 °C |
| Material: | Borosilicate glass 3.3, stainless steel, Hastelloy® |
This multipurpose pressure reactor system is designed for the use of interchangeable steel pressure vessels. Safety features guarantee safe reactions under pressure.
The steel reactors ensure high resistance against acids, while allowing high pressure reactions. The magnetic drive ensures efficient mixing and stirring of the process media as well as excellent heat transfer.

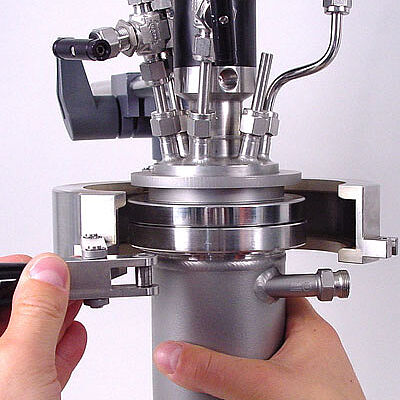

The Fast Action Closure makes changing vessels quick and easy without the use of tools.

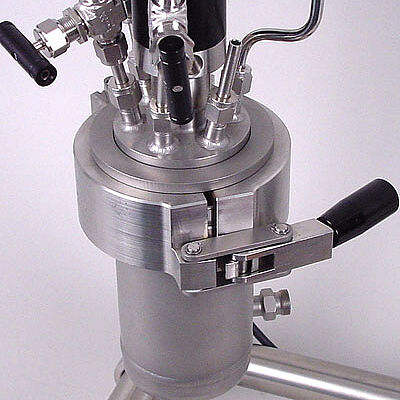

The modular setup of the miniclave drive system allows changing or upgrading for new tasks at any time.
A wide range of accessories is available – talk to us to define the right setup for your specific need.

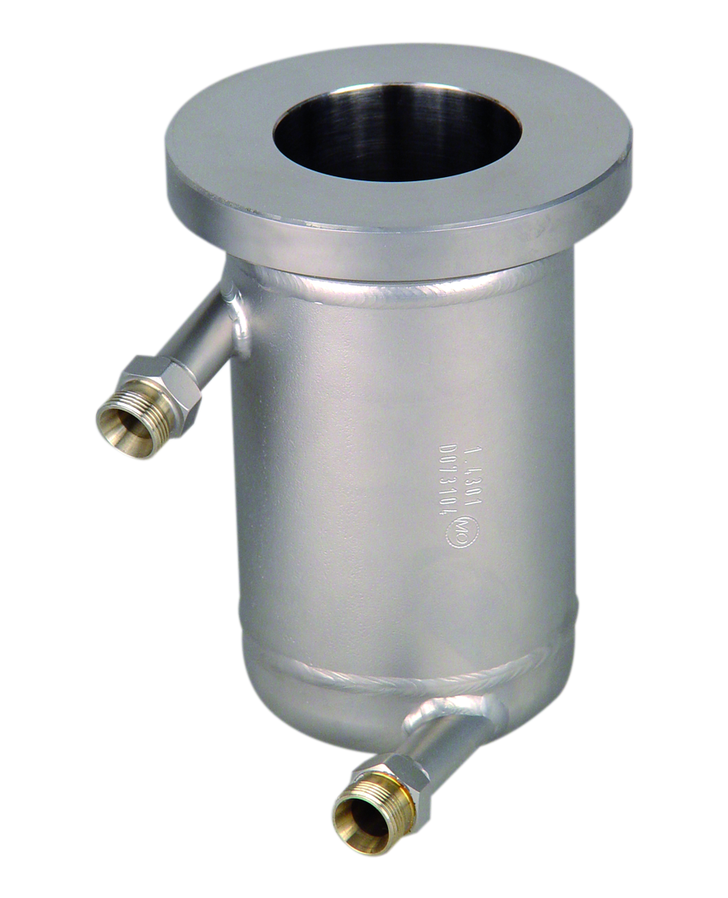

Metal (type 3)
100, 200, 300 ml
300 °C
150 bar
with drain opening

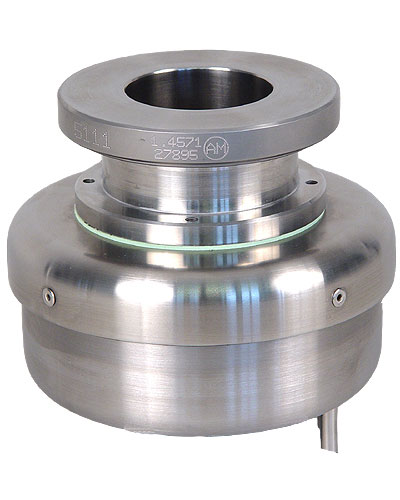

Metal (type 3E)
100, 200, 300 ml
300 °C
150 bar
with drain opening
For Type 3E, vessels
