| Reactor volume: | 100 to 600 ml |
| Pressure: | -1 (FV) to + 500 bar |
| Temperature: | - 20 °C to +500 °C |
| Material: | stainless steel, Hastelloy® |

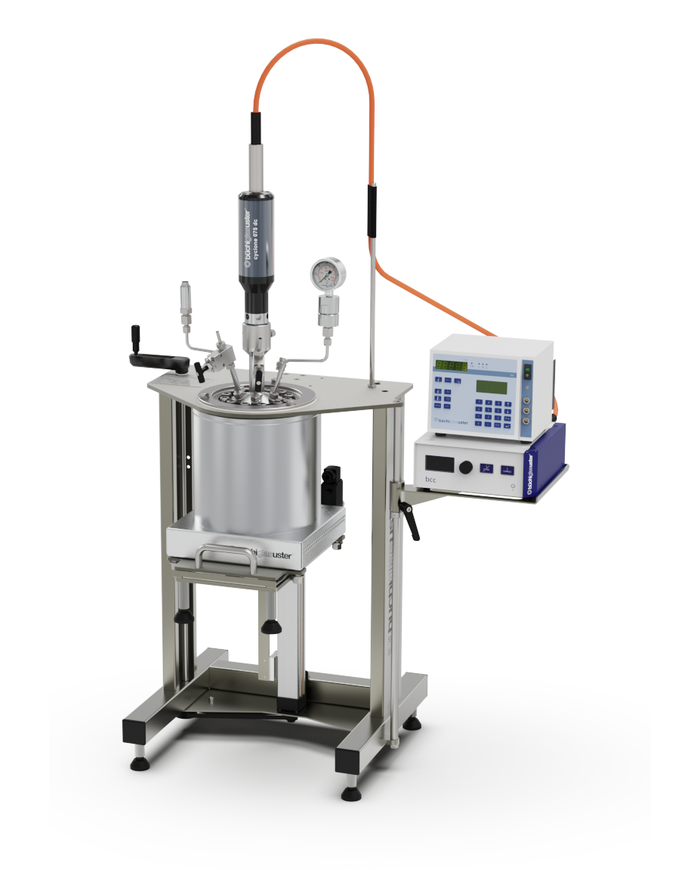

This is our new high pressure and high temperature HPHT (high pressure high temperature) autoclave novoclave. This high pressure reactor system is designed for processes involving high pressures and temperatures.

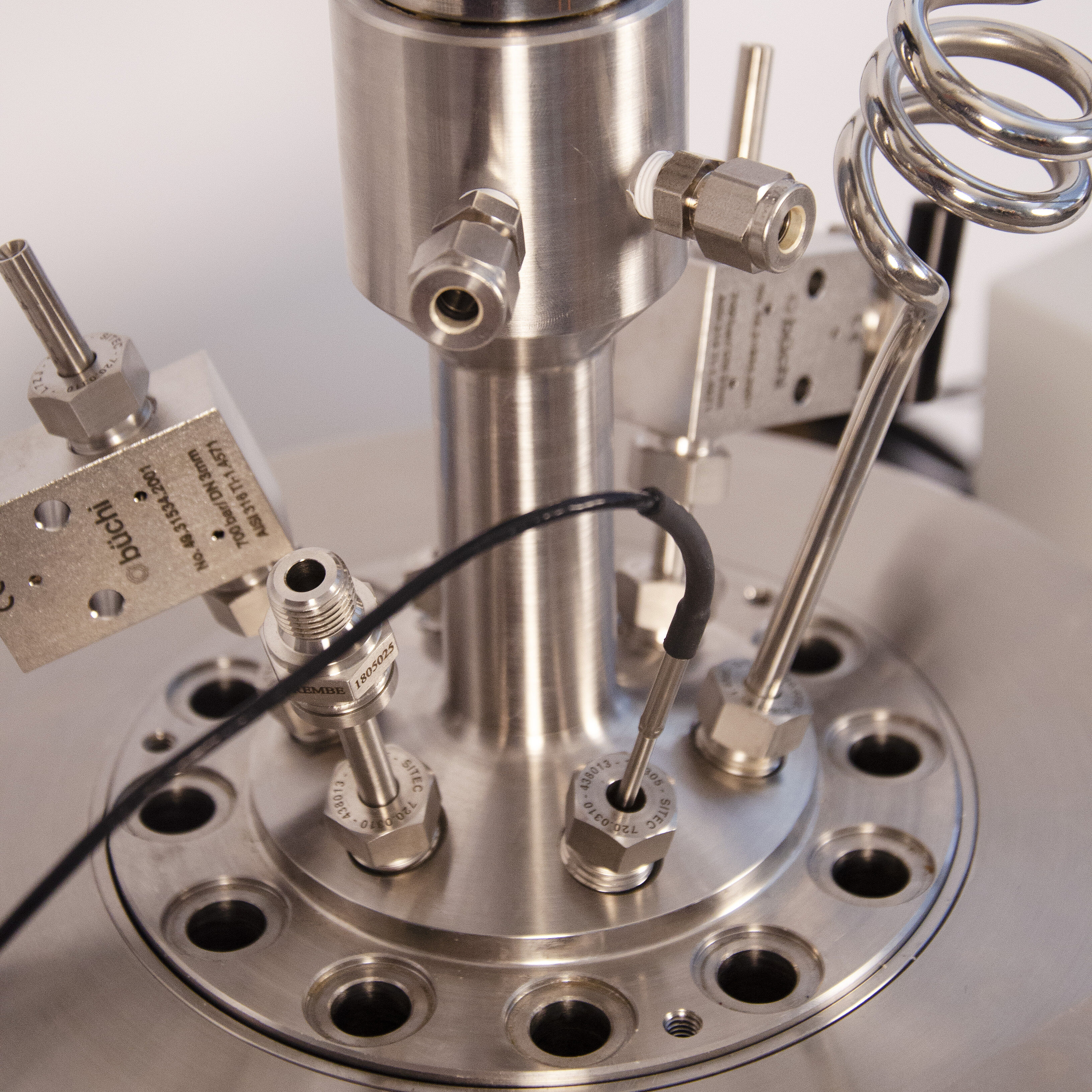

Safety features guarantee safe reactions under highest pressure. Designed, manufactured, and tested according to PED, AD2000. Electrical heating with built-in automated tap water cooling for fast and precise temperature control and programmable PID controller for operation at device or via PC.
The modular setup of the novoclave system allows for changing the vessel size from 100 ml up to 600 ml using the same cover plate and electric heating block. Vessels are available in the following volumes: 100, 200, 300, 450, 600 ml. Despite changing vessel sizes, the optimal vessel geometry (i.e. relation between diameter and length) is maintained.
The stainless steel or Hastelloy® reactors ensure high corrosion resistance. The magnetic stirrer drive ensures efficient mixing and stirring of the process media as well as excellent heat transfer.
"The 100ml novoclave works great for my bench top scale. I love the idea that I can scale up to 600 ml at any time without having to purchase an entire new reactor. We use the novoclave for benchtop depolymerization reactions. Basically, we fractionate biomass into its monomeric components to serve as platform chemicals for other high value biomaterials or bioproducts. This employs water together with other solvents, acid or a base. The reactor vessel is well built to serve its purpose. It does not take up space at all which is great for a benchtop lab setting."
Emmanuel Atta-Obeng, Assistant Professor, Department of Natural Science, Coppin State University (March 2022)
Do you have any questions? Would you like to get in touch with us personally? Ask our specialists. We look forward to hearing from you!
