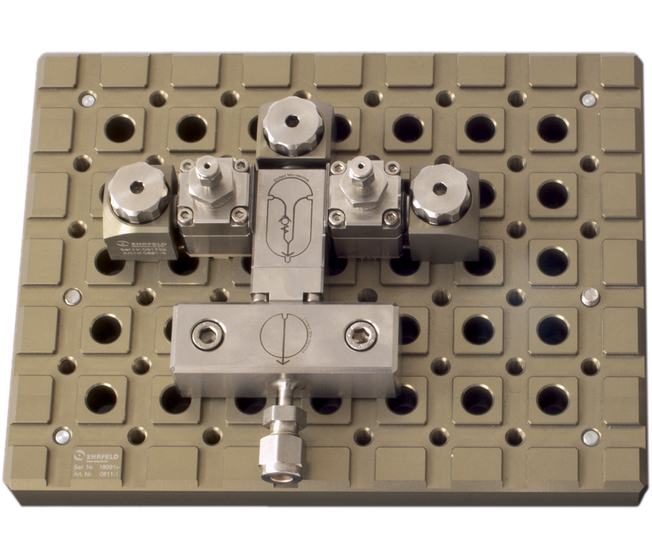

Sturdy micro-reactor building kit for flow chemistry - screening, process optimization, scale-up and small scale synthesis

Base plate dimension (l x w): 212 x 162 / 325 x 212 / 425 x 325 mm2
Max. pressure process medium: up to 100 bar
Temperature: -20 °C to +200 °C (optional -60 °C to 600 °C)

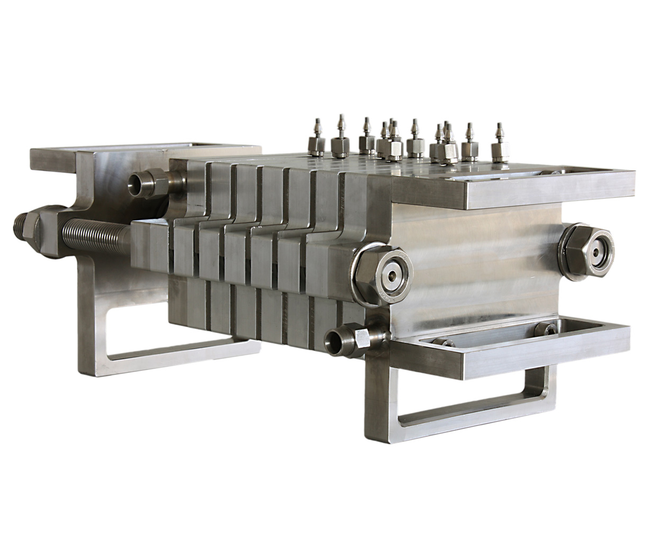

FlowPlate® micro-reactors – premium toolkit for continuous flow chemistry developed by Lonza

Max. pressure process medium (service medium): 35 bar (6 bar)
Temperature: -20 °C to +200 °C

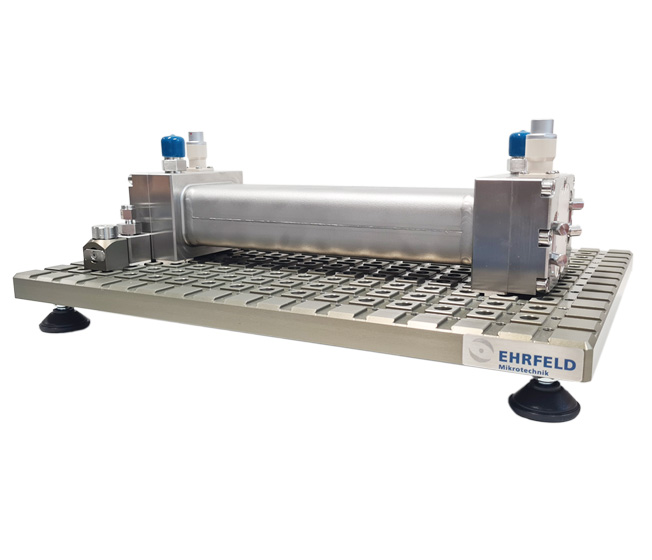

Miprowa® - flow reactor with unique rectangular channel design

Max. pressure process medium (at 200 °C): 16 - 75 bar
Temperature: -60 °C to +400 °C
Process volume: 7.5 to 30 ml

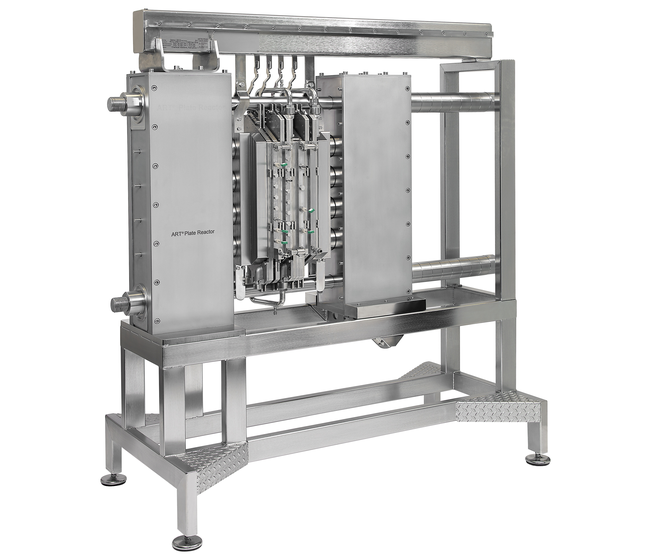

Sturdy micro reactor in plate design - for flow chemistry solutions for screening, process optimization, scale-up and production-scale synthesis

Max. pressure process medium (service medium): 20 bar (10 bar)
Temperature: -60 °C to +200 °C

Integrated flow chemistry system solutions

Having mastered a great variety of different challenges around flow chemistry processes from laboratory through pilot to production scale over the last 20 years, Ehrfeld is able to offer a broad range of standardized system solutions (integrated solutions). These integrated micro reactor solutions incorporate Ehrfeld's vast know-how and experience in continuous flow chemistry to the benefit of the customer.

Integrated flow chemistry scale-up concept

Already in the early phase of flow chemistry process development, the micro reactor equpiment concept exploits potential for further upscaling.

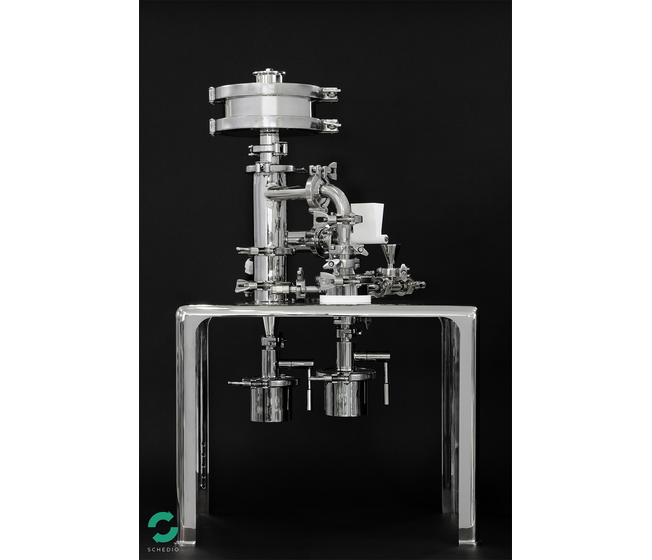

Spiral Jet Mill / Jet Milling - mainly used for processing APIs

Jet mill feed rate: 0.01 to 700 kg/h
Initial particle size: 500 to 1,500 µm
Final particle size: 0.5 - 10 µm


Opposite Jet Mill -  for Active Pharmaceutical Ingredients or non-pharmaceutical compounds

Jet mill feed rate: 0.5 to 300 kg/h
Initial particle size: 5,000 µm
Final particle size: 0.5 - 10 µm

Compact equipment with an increased evaporation capacity developed specifically for small productions or scale-up activities.

Evaporative capacity max.: 2 kg/h (distilled water)
Max. inlet temperature: 220 °C
Heating capacity: 4.0 kW
Fan capacity max.:  60 m³/h

Closed loop for organic solvent processing and spray congealing setup available.

Evaporative capacity max.: 5 kg/h (distilled water)
Max. inlet temperature: 300 °C
Heating capacity: 11 kW
Fan capacity max.: 210 m³/h

Highly customizable and adjustable according to customer's specifications.

Evaporative capacity max.: 8 kg/h (distilled water)
Max. inlet temperature: 300 °C
Heating capacity: 17.5 kW
Fan capacity max.: 210 m³/h

Compact, production-scale equipment with an increased evaporation capacity.

Evaporative capacity max.:  30 kg/h (distilled water)
Max. inlet temperature:   330 °C
Heating capacity: 40.5 kW
Fan capacity max.: 360 m³/h

Discover the versatile mzr® micro annular gear pump series – precision in every drop.

Our product range encompasses five innovative pump series designed for dosing and conveying minute liquid quantities of low to high-viscosity media.

Precision dosing systems for liquids – tailored to your needs

Compact dosing systems are designed to support a wide range of applications, offering ready-to-use solutions configured to meet specific requirements. With decades of expertise in fluidic component selection and system design, these systems provide customized, automated solutions built for reliability and precision.
