Typical applications
- Filtration of HPAPI
- Filtration / Separation
- Purification
- Crystallization
- Ion exchange
- Peptide synthesis
- Solid phase peptide synthesis (SPPS)
- Chromatography
- Filtration under protective atmosphere
High containment filter
HC Filter
Glass vessel: 30 liter
Pressure: -1.0 (FV) to +0.5 bar
Temperature: -60°C to +200°C
Material: Glove made of EPDM
other materials, characteristics, see nutsche filters
The purpose of this filter is controlled filtration with a contained discharge by wiping out with the fixed glove into a bag system. The filter vessel can easily be lifted, lowered and tilted due to its versatile and solid stand.
Examples

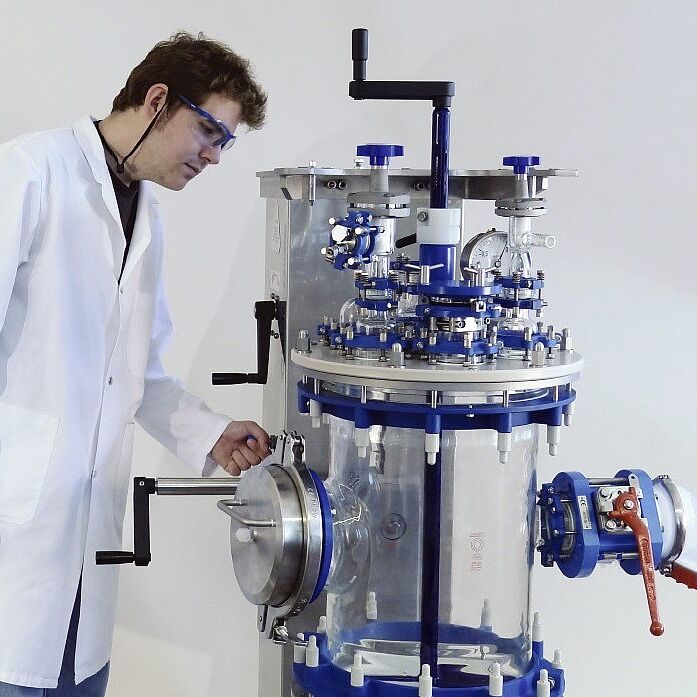

Lowering of filter vessel

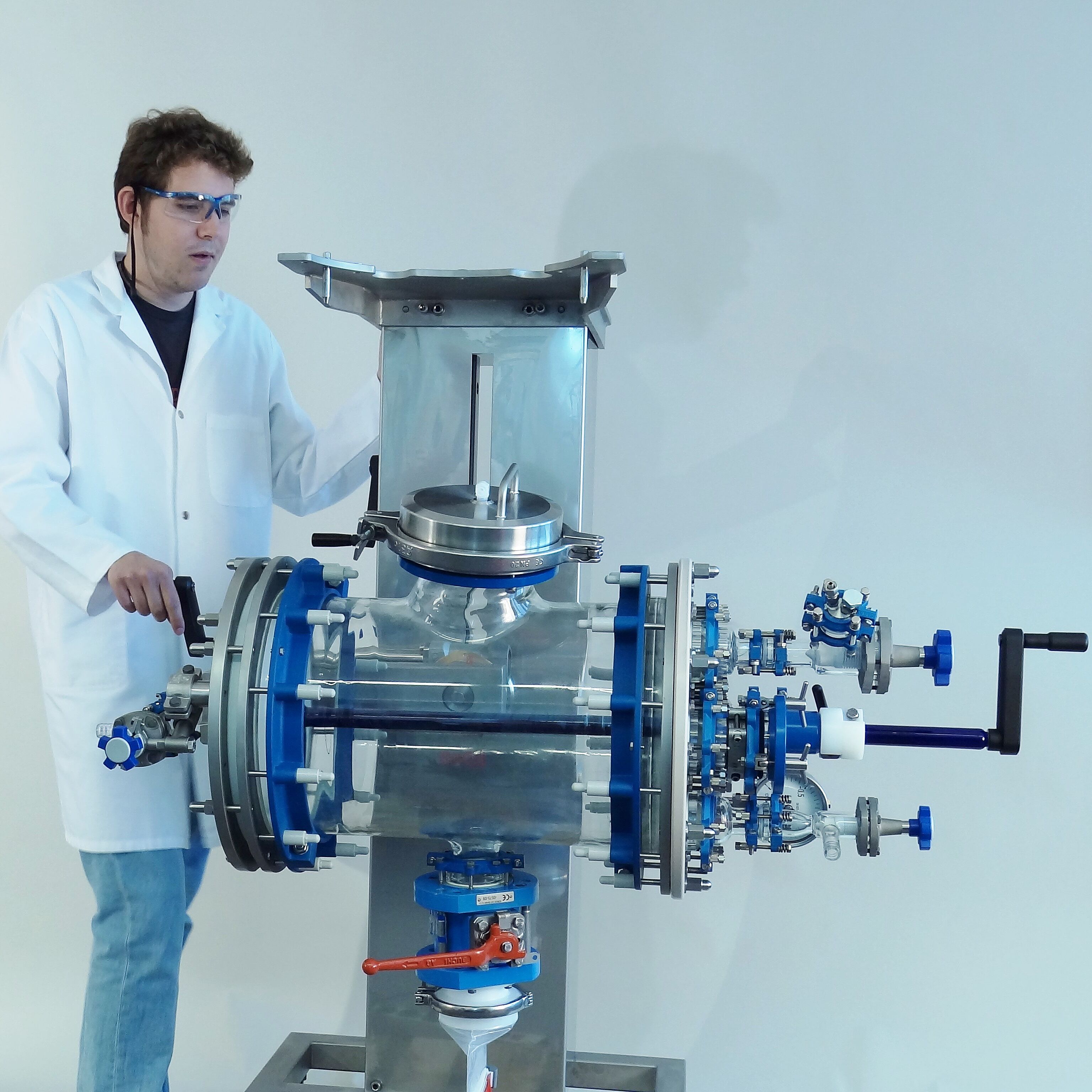

High containment filter tilting

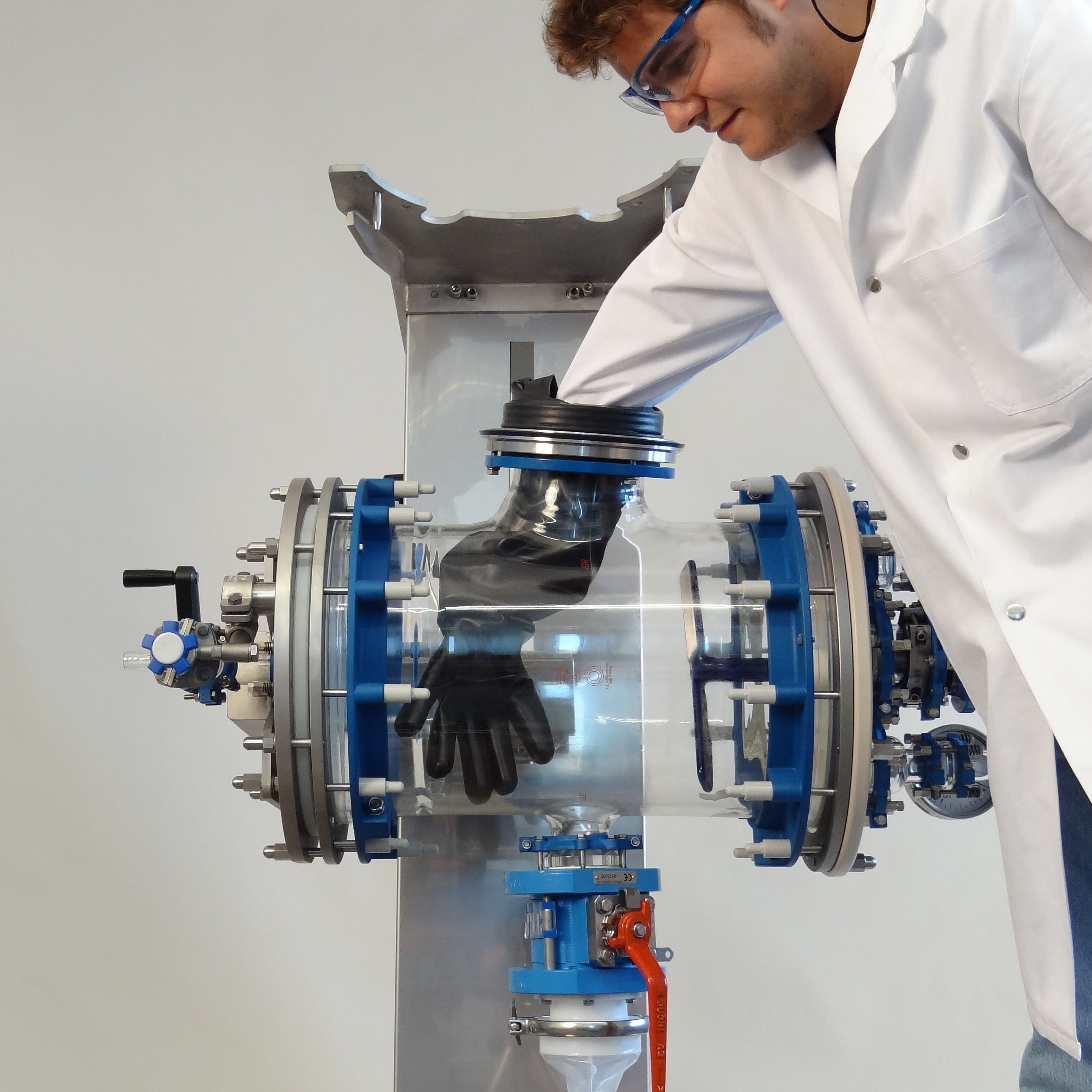

Contained discharge of slurry
