MMRS - modular micro-reaction system
Sturdy micro-reactor building kit for flow chemistry - screening, process optimization, scale-up and small scale synthesis

Base plate dimension (l x w): 212 x 162 / 325 x 212 / 425 x 325 mm2
Max. pressure process medium: up to 100 bar
Temperature: -20 °C to +200 °C (optional -60 °C to 600 °C)

FlowPlate® micro-reactors – premium toolkit for continuous flow chemistry developed by Lonza

Max. pressure process medium (service medium): 35 bar (6 bar)
Temperature: -20 °C to +200 °C

Miprowa® - flow reactor with unique rectangular channel design

Max. pressure process medium (at 200 °C): 16 - 75 bar
Temperature: -60 °C to +400 °C
Process volume: 7.5 to 30 ml

Sturdy micro reactor in plate design - for flow chemistry solutions for screening, process optimization, scale-up and production-scale synthesis

Max. pressure process medium (service medium): 20 bar (10 bar)
Temperature: -60 °C to +200 °C

Integrated flow chemistry system solutions

Having mastered a great variety of different challenges around flow chemistry processes from laboratory through pilot to production scale over the last 20 years, Ehrfeld is able to offer a broad range of standardized system solutions (integrated solutions). These integrated micro reactor solutions incorporate Ehrfeld's vast know-how and experience in continuous flow chemistry to the benefit of the customer.

Integrated flow chemistry scale-up concept

Already in the early phase of flow chemistry process development, the micro reactor equpiment concept exploits potential for further upscaling.

Spiral Jet Mill / Jet Milling - mainly used for processing APIs

Jet mill feed rate: 0.01 to 700 kg/h
Initial particle size: 500 to 1,500 µm
Final particle size: 0.5 - 10 µm

Opposite Jet Mill -  for Active Pharmaceutical Ingredients or non-pharmaceutical compounds

Jet mill feed rate: 0.5 to 300 kg/h
Initial particle size: 5,000 µm
Final particle size: 0.5 - 10 µm

Schedio designs and manufactures containment systems capable of guaranteeing high standards of safety and protection for the operator, the product, and the environment.

Schedio’s commitment to its customers does not end when the project is delivered, but it is built into the ongoing support Schedio is able to offer in the supply of aftersales services.

Compact equipment with an increased evaporation capacity developed specifically for small productions or scale-up activities.

Evaporative capacity max.: 2 kg/h (distilled water)
Max. inlet temperature: 220 °C
Heating capacity: 4.0 kW
Fan capacity max.:  60 m³/h

Closed loop for organic solvent processing and spray congealing setup available.

Evaporative capacity max.: 5 kg/h (distilled water)
Max. inlet temperature: 300 °C
Heating capacity: 11 kW
Fan capacity max.: 210 m³/h

Highly customizable and adjustable according to customer's specifications.

Evaporative capacity max.: 8 kg/h (distilled water)
Max. inlet temperature: 300 °C
Heating capacity: 17.5 kW
Fan capacity max.: 210 m³/h

Compact, production-scale equipment with an increased evaporation capacity.

Evaporative capacity max.:  30 kg/h (distilled water)
Max. inlet temperature:   330 °C
Heating capacity: 40.5 kW
Fan capacity max.: 360 m³/h

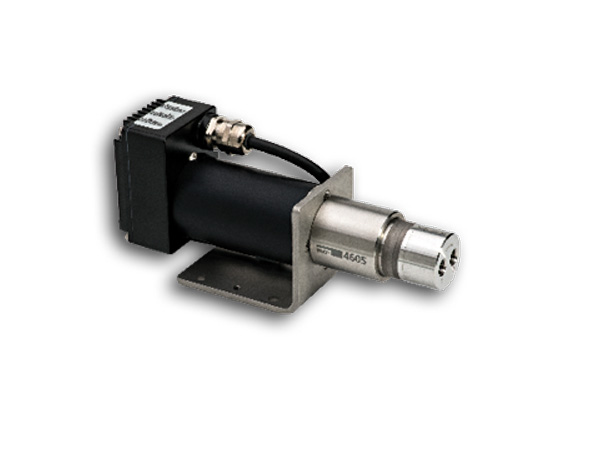

Discover the versatile mzr® micro annular gear pump series – precision in every drop.

Our product range encompasses five innovative pump series designed for dosing and conveying minute liquid quantities of low to high-viscosity media.

Precision dosing systems for liquids – tailored to your needs

Compact dosing systems are designed to support a wide range of applications, offering ready-to-use solutions configured to meet specific requirements. With decades of expertise in fluidic component selection and system design, these systems provide customized, automated solutions built for reliability and precision.
