kiloclave - lab pressure reactor

Laboratory pressure reactor system - easy operation for heavy pressure vessels

Reactor volume: 0.5 to 20.0 liter
Pressure: -1 (FV) to +60 / 200 bar
Temperature: -20 °C to +250 °C
Material: stainless steel, Hastelloy®, glass-lined steel

Other materials, pressures & temperatures are available

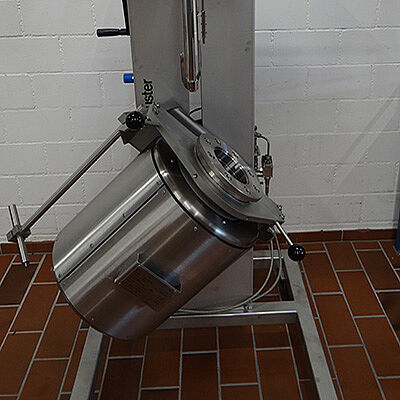

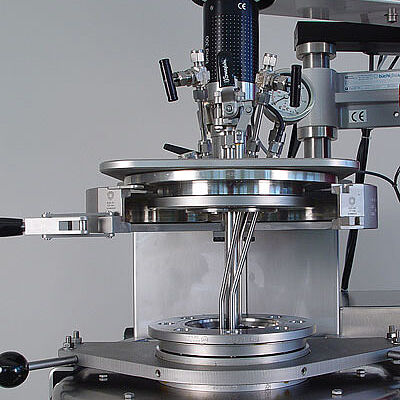

This multipurpose pressure reactor system is designed for the use of large steel pressure vessels. The hydraulic vessel lift with tilt function makes opening and closing as well as cleaning of the vessel very easy. Safety features guarantee safe reactions under pressure.

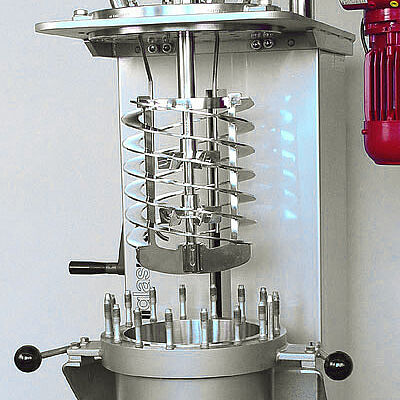

The stainless steel or Hastelloy® reactors ensure high resistance against acids. Visual process control and monitoring is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer.

The modular setup of the kiloclave system allows changing or upgrading for new tasks at any time.

A wide range of accessories for feeding of liquids, solids, gas, a fast action closure device and others like catalyst baskets etc. are available – talk to us to define the right setup for your specific need.

Package / Options

Standard package

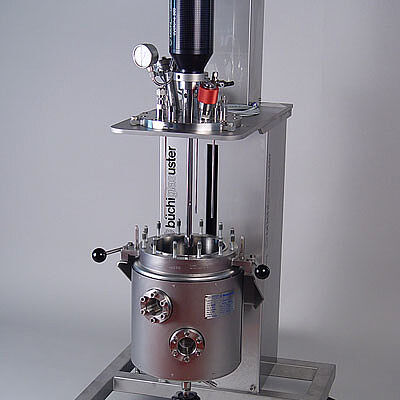

  • Stand with hydraulic lift and tilt mechanism
  • Pressure vessel in steel / Hastelloy® with suitable stirrer shaft, stirrer, baffle, Pt-100 and bottom valve

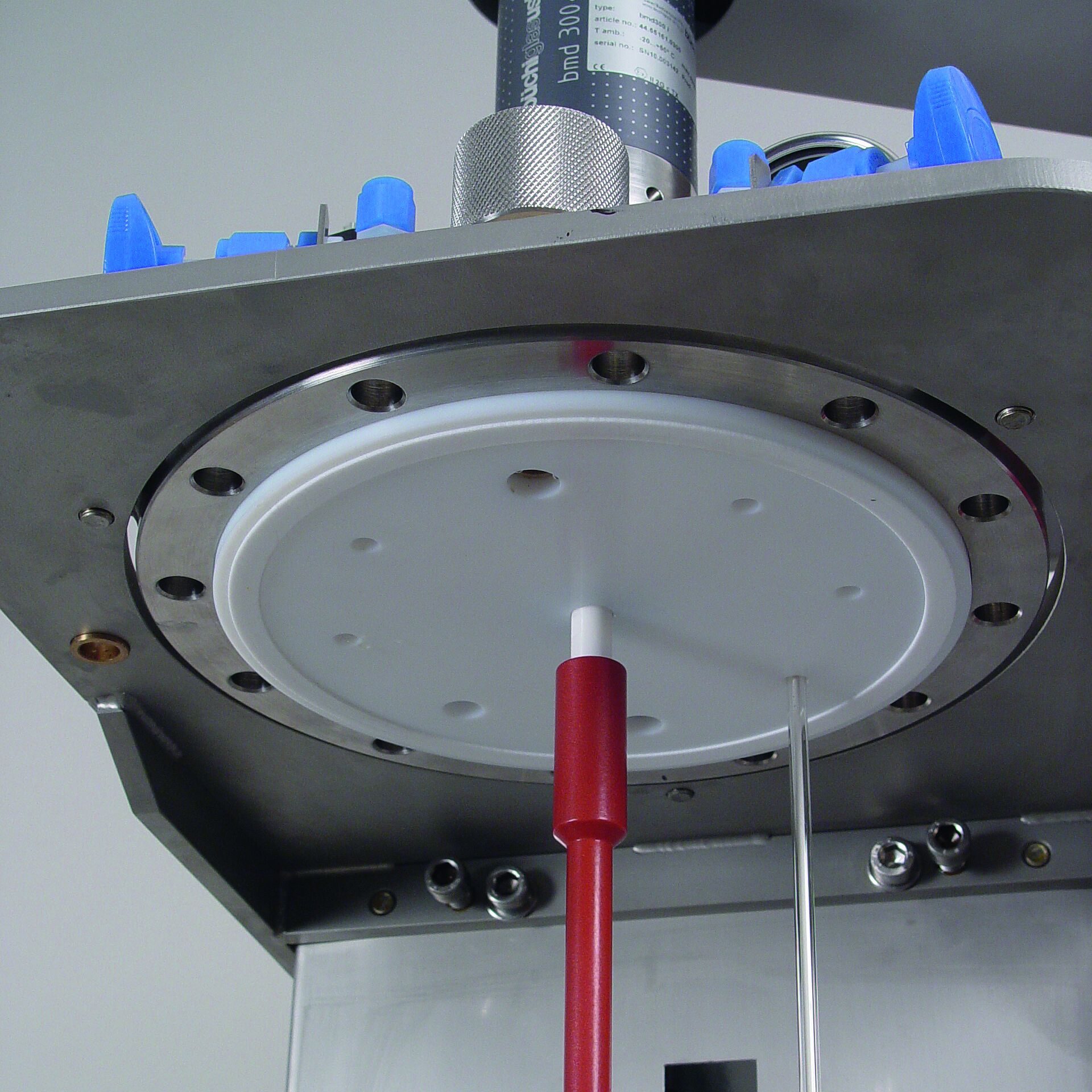

  • Cover plate with 7 openings and standard setup
  • Swagelok fittings with bursting disc, manometer and 2 valves

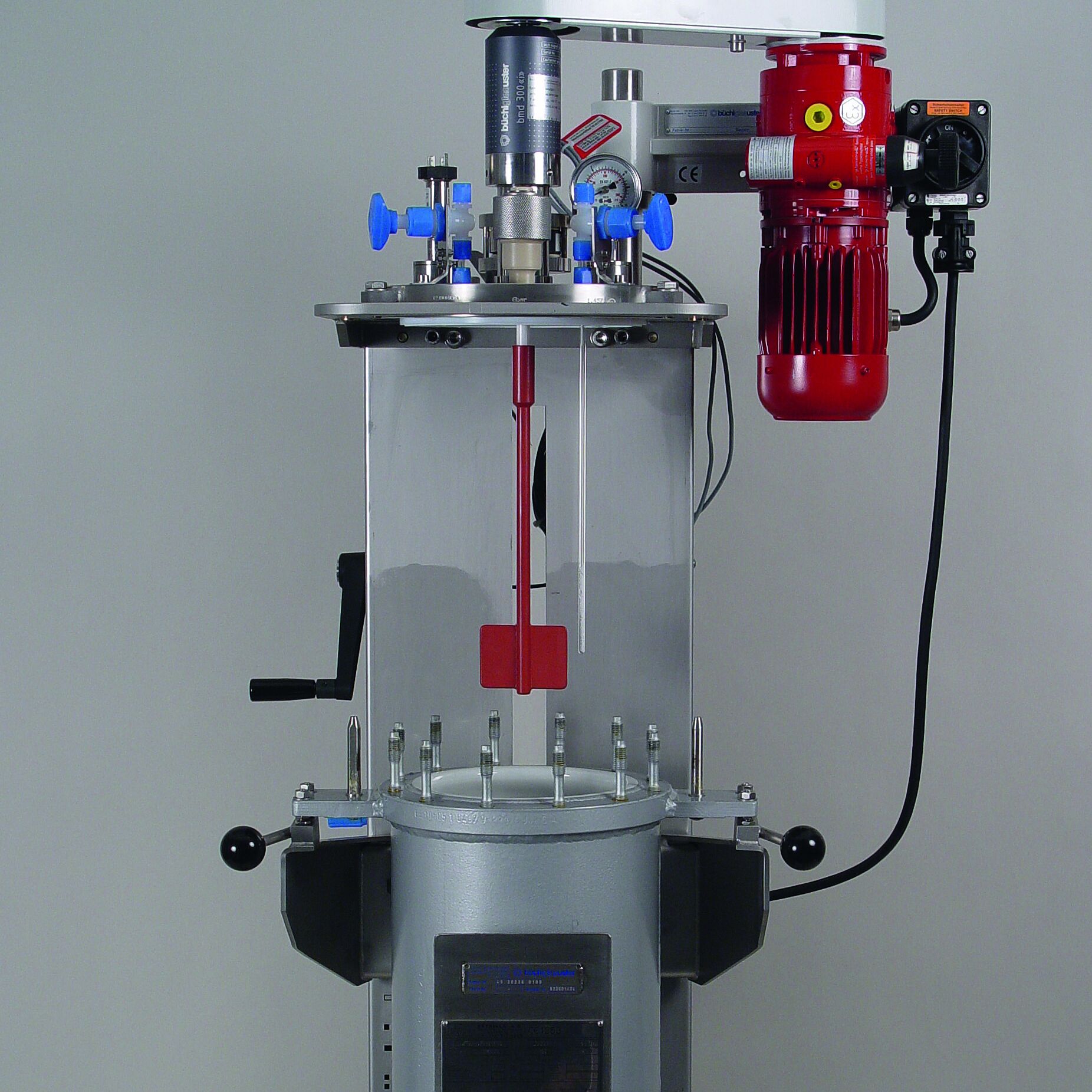

  • ATEX stirrer drive with adjustable transmission and high torque magnetic coupling bmd300
  • Tools and spare parts

Standard options

Jacketed pressure vessels for heating with thermostat

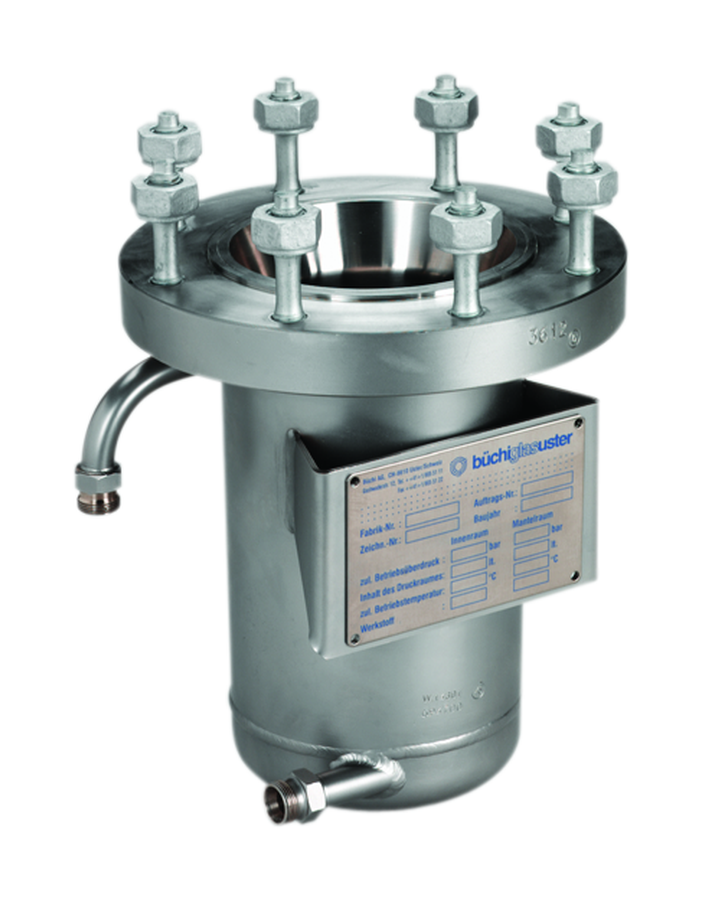

Type 3
0.5, 1.0, 2.0, 3.0, 5.0,
10.0, 20.0 liter
60 bar

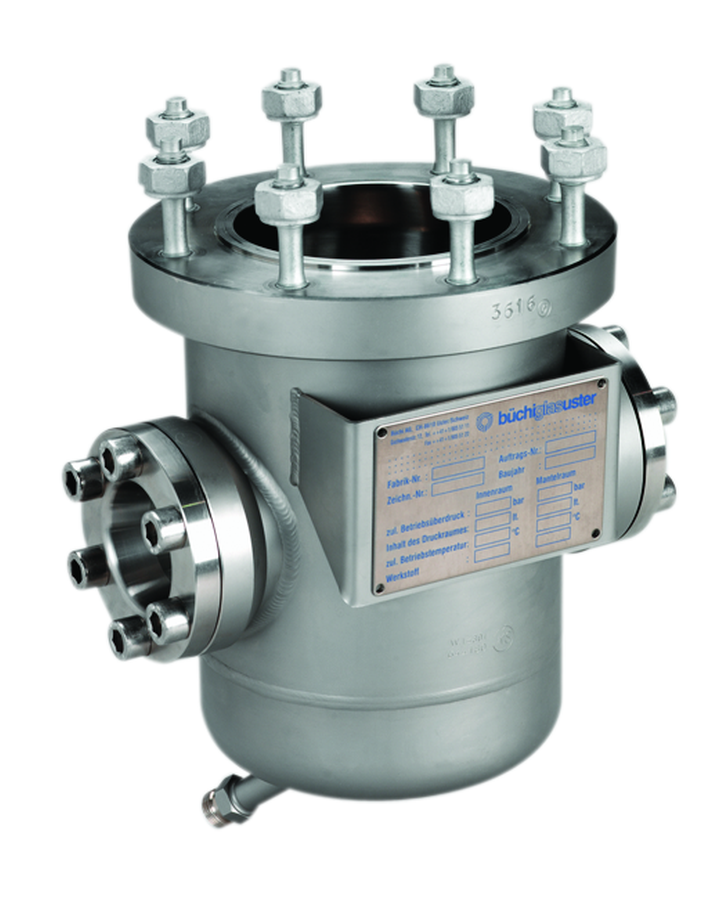

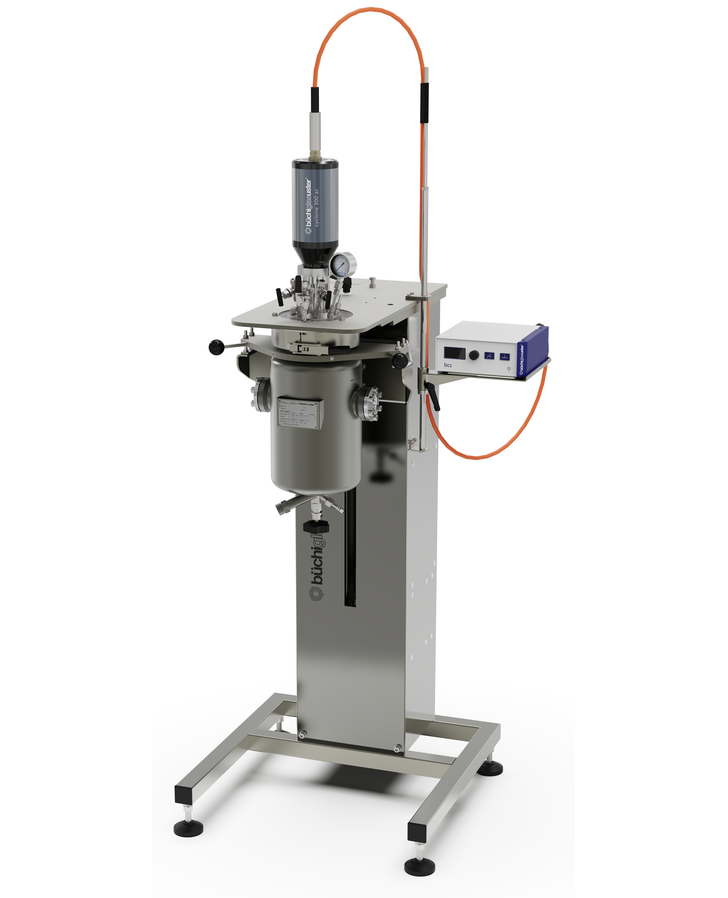

Type 4
Metal/Sight glass
1.0, 2.0, 3.0, 5.0,
10.0, 20.0 liter
60 bar

Pressure vessels with electric heating and water cooling

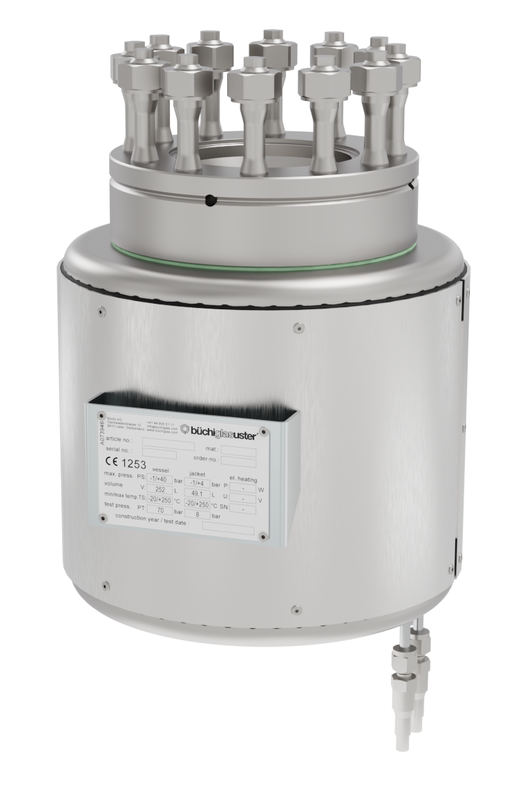

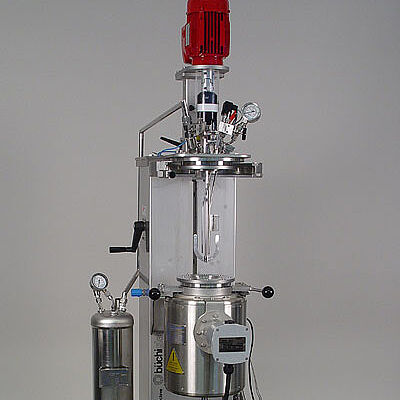

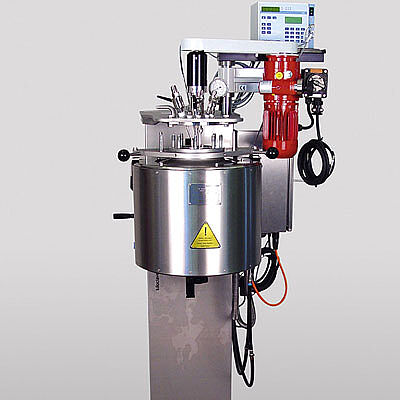

Type 3E
0.5, 1.0, 2.0, 3.0, 5.0,
10.0, 20.0 liter
60 bar

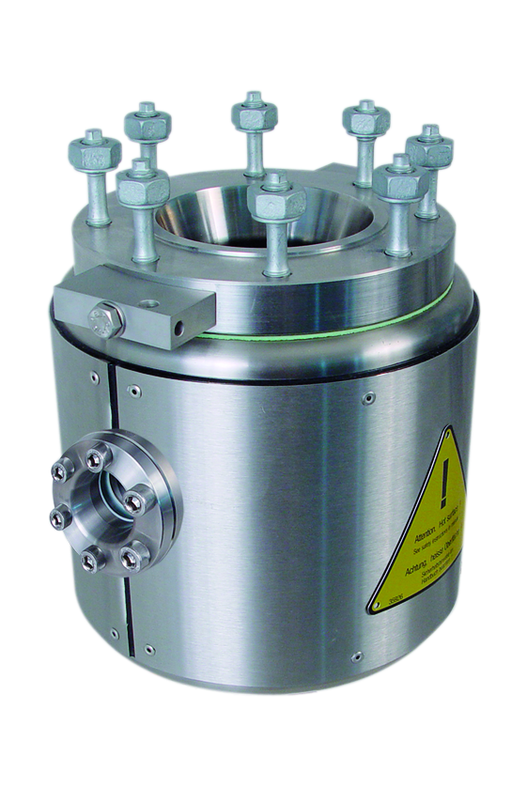

Type 4E
Metal/Sight glass
1.0, 2.0, 3.0, 5.0,
10.0, 20.0 liter
60 bar

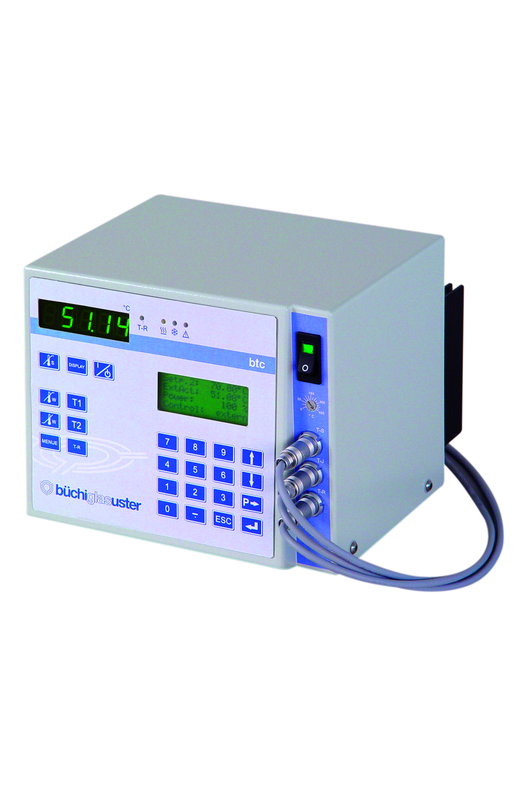

PID temperature controller
for Type 3E and 4E vessels

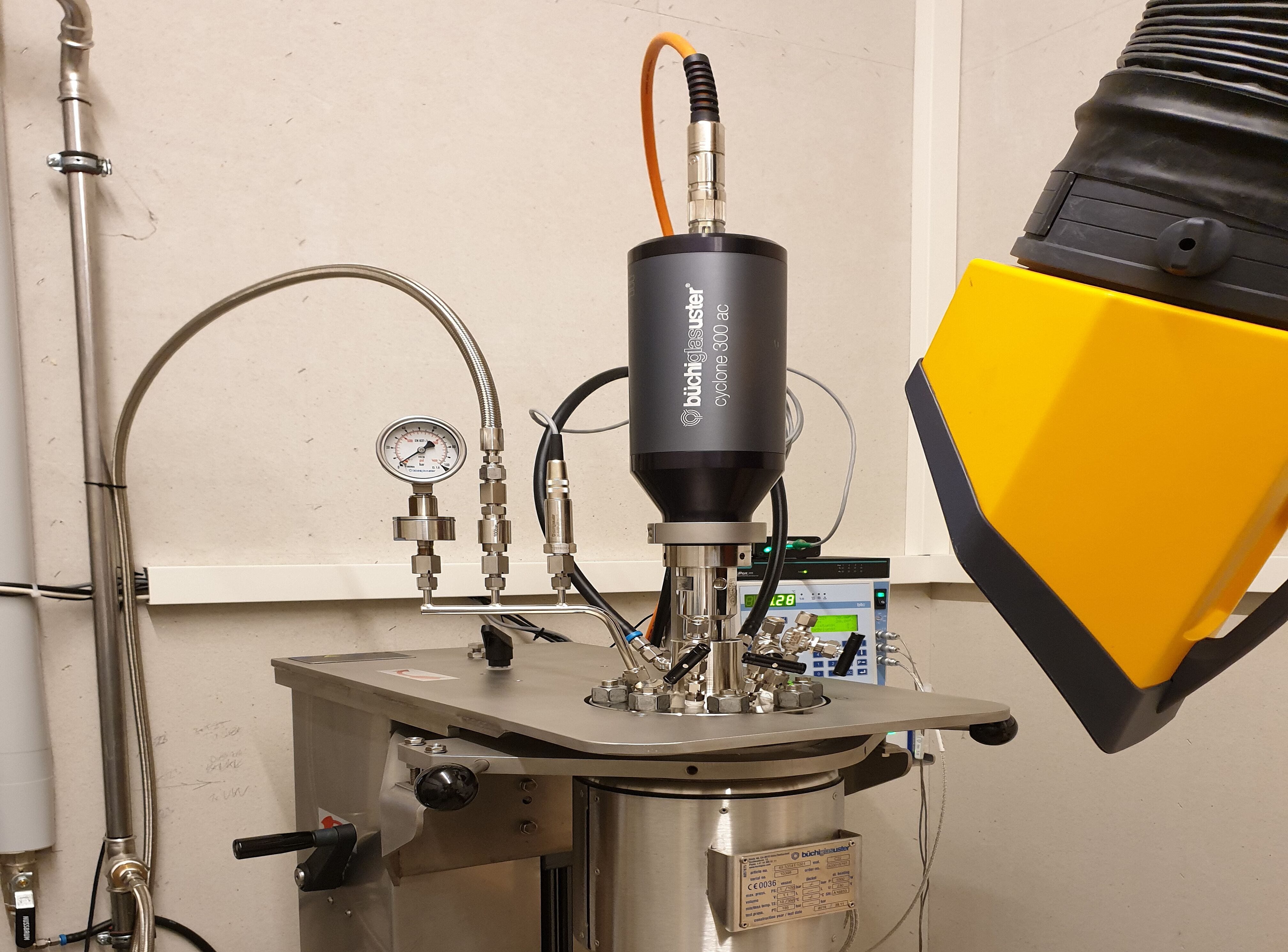

"For carbonization, we have chosen the Buchi kiloclave Type 3E with a Cyclone 300 drive as stirrer agitator. The design of the reactor stand allows easy filling and emptying by single person. The individual components can be cleaned easily. Two stainless steel vessels with 0.5 liter and 5 liter are available as reactor vessels. For special reaction experiments in the acidic range by adding organic or mineral acids, a 1 liter reactor made of Hastelloy® is used."
Gabriel Gerner, Research assistant, Zurich University of Applied Sciences ZHAW, Wädenswil

Learn more about the kiloclave in the Case study "Sustainable coal production in Buchi kiloclave Type 3E)"


"Our emulsion polymerization process is very difficult to simulate at the laboratory scale. The process runs at moderately high temperature and elevated pressure. High-shear agitation is critical to product quality. We have struggled to identify a pilot reactor that provided just what we need.  The available systems either cannot achieve the elevated pressure or are designed for extreme pressure, making them extremely bulky and costly. We had begun enlisting custom equipment manufacturers until we came across the Buchi kiloclave system, which was a good fit for us. With some simple, cost effective, customization, the kiloclave has proven to be the perfect pilot reactor for our process optimization."
Mark G. Stevens, PhD., Sr. Manager, Engineering Design and Development, Dentsply Sirona, Restoratives

Typical applications

  • Hydrogenation reactor
  • Polymerization reactor
  • Synthesis reactor
  • Catalyst testing / evaluation
  • Catalytic reactor
  • Crystallization
  • Chemical research
  • Petrochemical research
  • Corrosion measurement
  • Upstream research
  • Biomass research
  • Biopolymer research
  • Biorefinery research
  • Biofuels research
  • Zeolite synthesis
  • Nanoparticle synthesis
  • API synthesis
  • Corrosion testing autoclave
