versoclave - lab pressure reactor

Laboratory pressure reactor system

Reactor volume: 0.5 - 5.0 liter
Pressure: -1 (FV) to +60 / 200 bar
Temperature: -20°C to +250 °C
Material: stainless steel, Hastelloy®

  • Other materials, pressures & temperatures are available.

This multipurpose pressure reactor system is designed for the use of interchangeable steel pressure vessels. Safety features guarantee safe reactions under pressure.

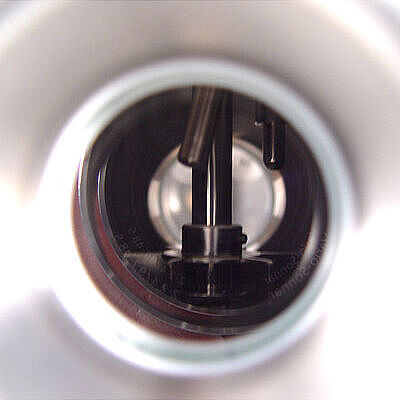

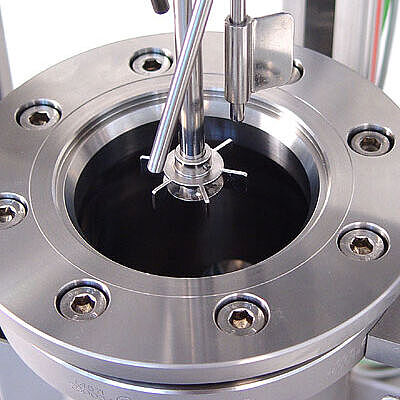

The stainless steel or Hastelloy® reactors ensure high resistance against acids. Visual process control and monitoring is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer.

The modular setup of the versoclave system allows changing or upgrading for new tasks at any time.

With fast action closure and reactor lift it becomes very easy to operate also heavy metal pressure vessels. A wide range of accessories for feeding of liquids / solids / gas and others like catalyst baskets, etc. are available – talk to us to define the right setup for your specific need.

Package / Options

Standard package

Standard options

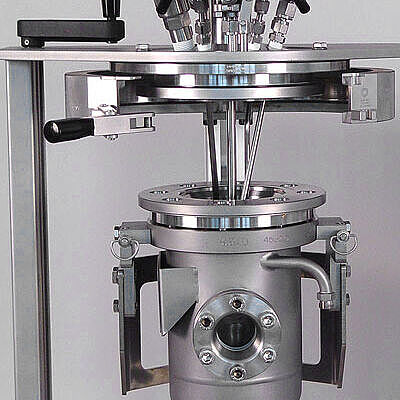

  • Reactor lifting / lowering device

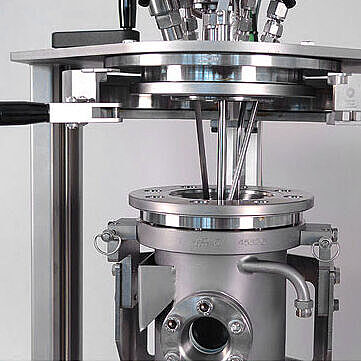

  • Safety Fast Action Closure for vessel

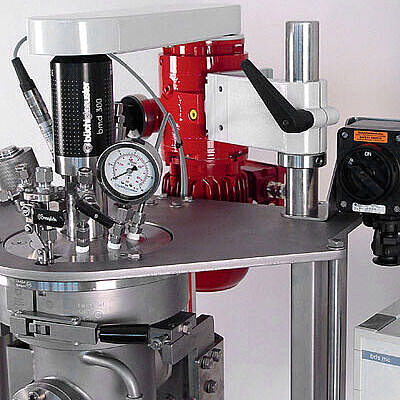

  • ATEX stirrer drive
  • Metal-free (inert version) with ceramic stirrer drive
  • Electric heating / water cooling
  • Measure and control systems
  • Wide range of accessories
  • 200 bar version

Jacketed pressure vessels for heating with thermostat

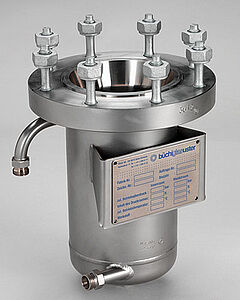

Type 3
0.5, 1.0, 2.0, 3.0, 5.0 liter
60 bar

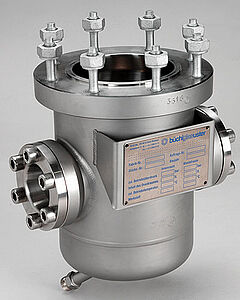

Type 4
Metal/Sight glass
1.0, 2.0, 3.0, 5.0 liter
60 bar

Pressure vessels with electric heating and water cooling

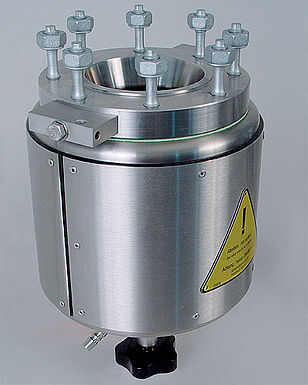

Type 3E
0.5, 1.0, 2.0, 3.0, 5.0 liter
60 bar

Type 4E
Metal/Sight glass
1.0, 2.0, 3.0, 5.0 liter
60 bar

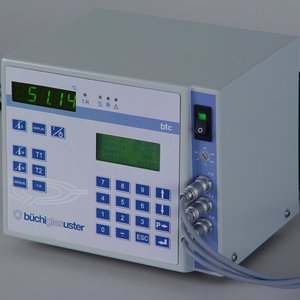

PID temperature controller
for Type 3E and 4E vessels


Typical applications

  • Hydrogenation reactor
  • Polymerization reactor
  • Synthesis reactor
  • Catalyst testing / evaluation
  • Catalytic reactor
  • Crystallization
  • Chemical research
  • Petrochemical research
  • Corrosion measurement
  • Upstream research
  • Biomass research
  • Biopolymer research
  • Biorefinery research
  • Biofuels research
  • Zeolite synthesis
  • Nanoparticle synthesis
  • Corrosion testing autoclave
