| Glass reactor: | 5, 10, 15 liter |
| Pressure: | -1.0 to +1.0 bar |
| Temperature: | -60 °C (optional -90 °C) to +200 °C |
| Material: | Borosilicate glass 3.3, PTFE, PFA, PEEK |
A clean-room setup and other materials are available to meet your specific process requirements.

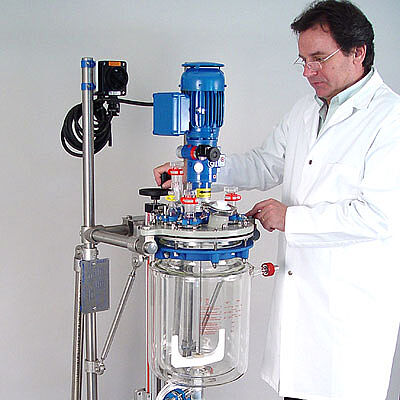

With the miniPilot® product family (reactor, nutsche filter, scrubber) we offer miniplant pilot reactors for chemical process development, scale-up, process simulation and kilo-scale production.

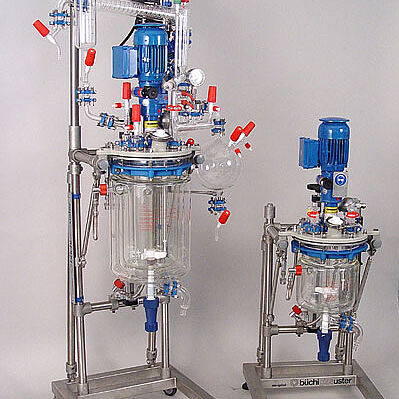

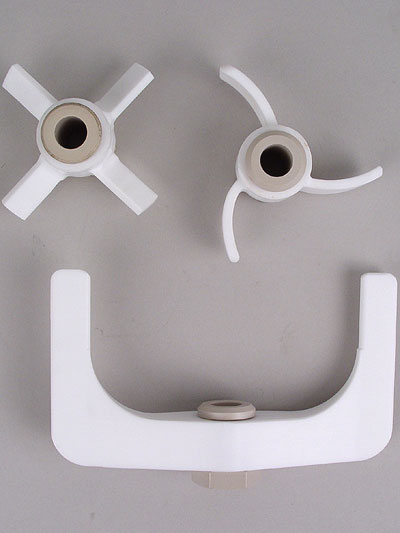

The reactors' explosion proof design (ATEX) and inert materials allow safe processing of solvents and acids in a completely sealed reaction vessel. The compact standard reactor setup can easily be modified, interchangeable reaction vessels of 5, 10 and 15 liter including interchangeable stirrers are available.

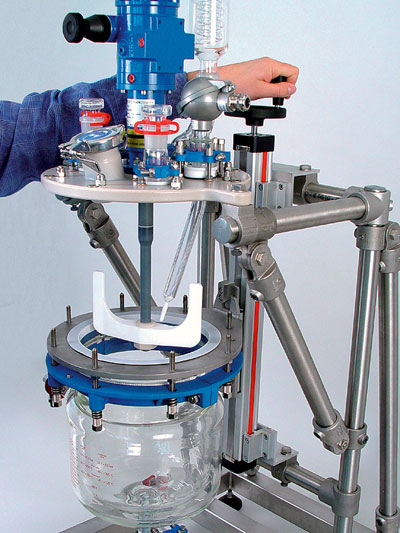

The reaction vessel is installed on a lifting / lowering device to simplify opening and cleaning. The distillation glass overhead is built with flexible ball-socket joints for multiple chemical reactions under full vacuum.

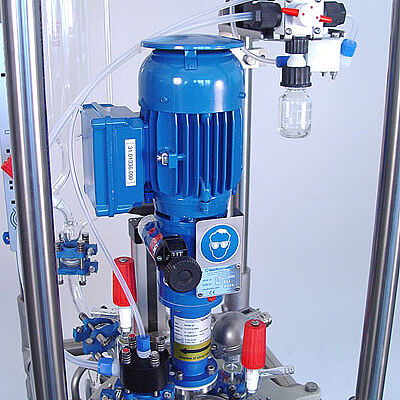

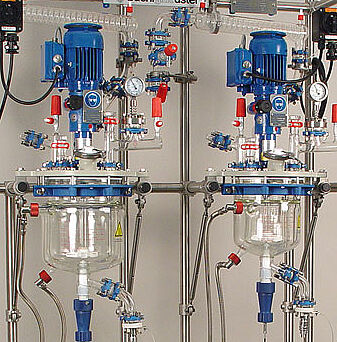

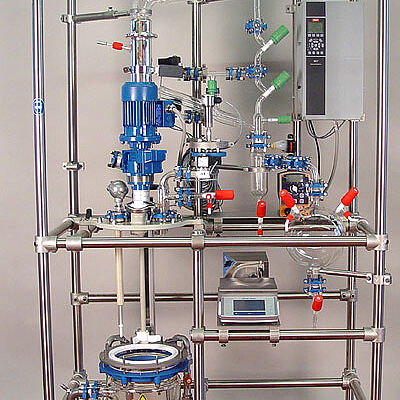

We produce complete solutions for chemical processing: Reactor systems including accessories like sampling devices, pH probes, rectification columns with structured packing, process monitoring and control as well as integration of auxiliary equipment such as temperature control units, nutsche filters / dryers, gas scrubbers or mixing vessels.

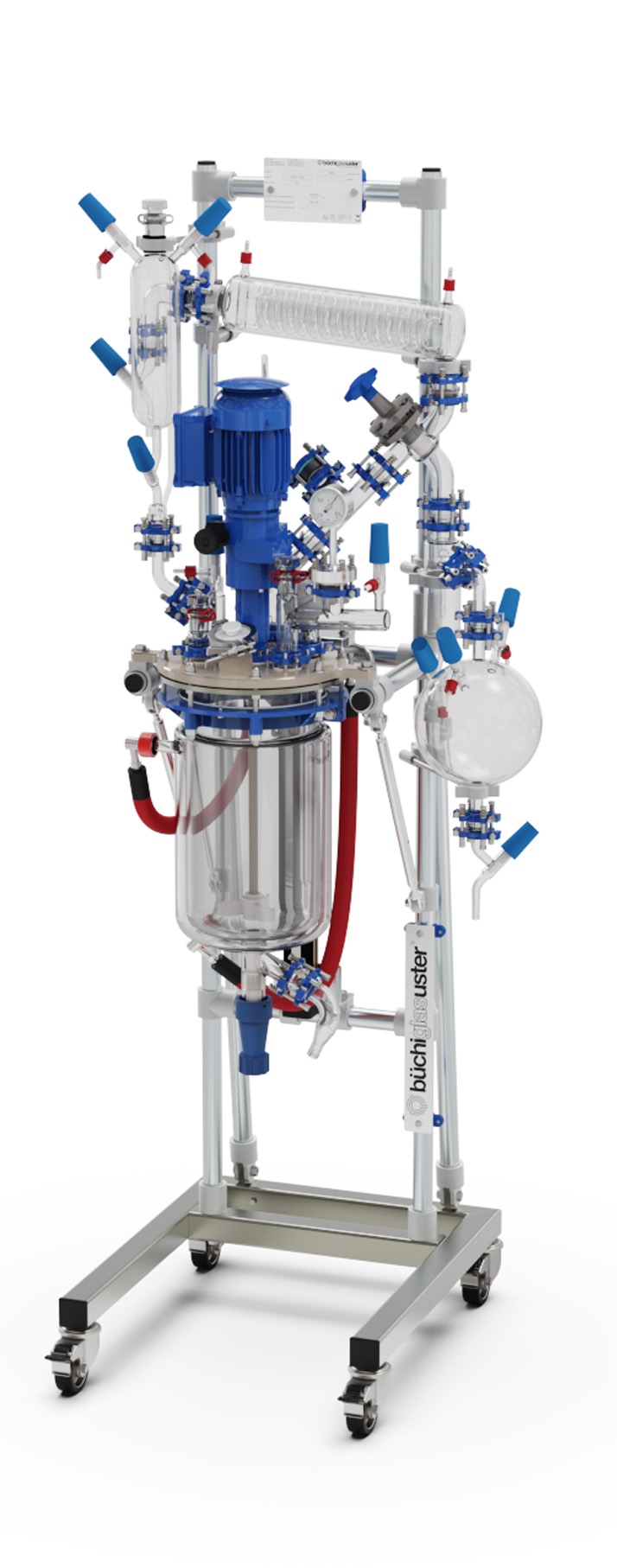

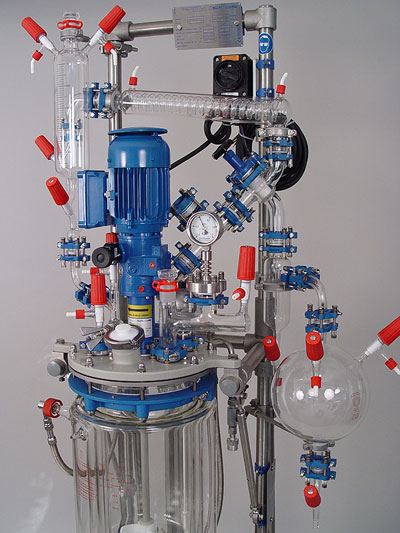

Optional distillation overhead consisting of:
Optional distillation overhead consisting of:
Flexible glass connection buchiflex
