Simple solution for Lab and R&D

Glass reactor: 0.1 to 20 liter
Pressure: -1 (FV) to ambient
Temperature: –80°C to +200°C (up to +250°C with special materials)

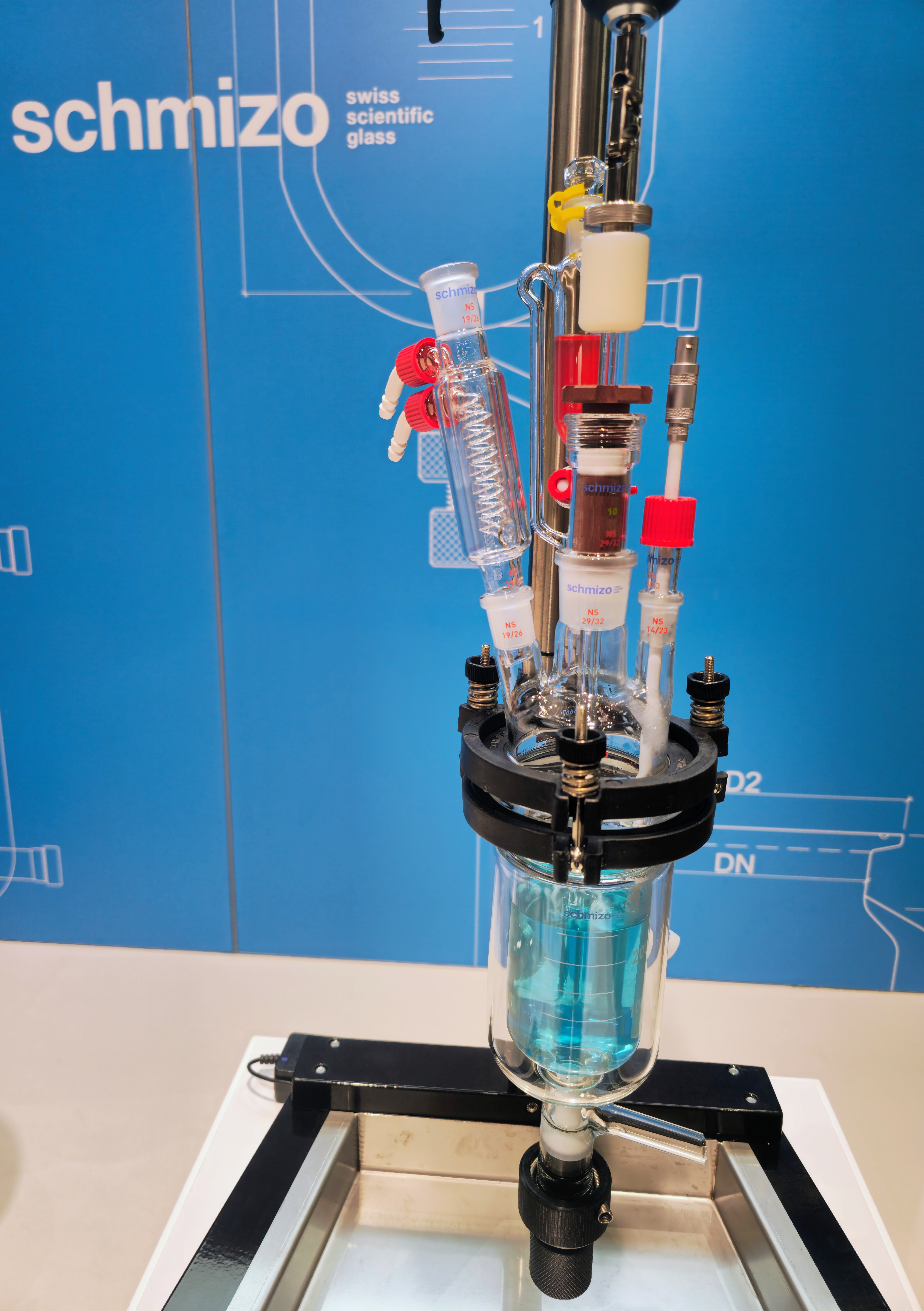

SCHMIZO Reactor systems provide a simple solution for lab and R&D related processes. The compact reactor size has a range from 100 ml to 20 liters.
These units can include a variety of accessories such as distillation setup, pH and/or redox probes, temperature probes, dry running mechanical seal, and innovative zero dead space bottom discharge valve (easy to clean). Many other accessories are possible upon request.

The SCHMIZO Reactor system can be offered with vessels with or without heating jackets (Glass vessel with triple wall for low temperature chemistry also possible) as well as versions with or without bottom discharge valves. These units typically have a relatively low lead time.

Optional vessel examples

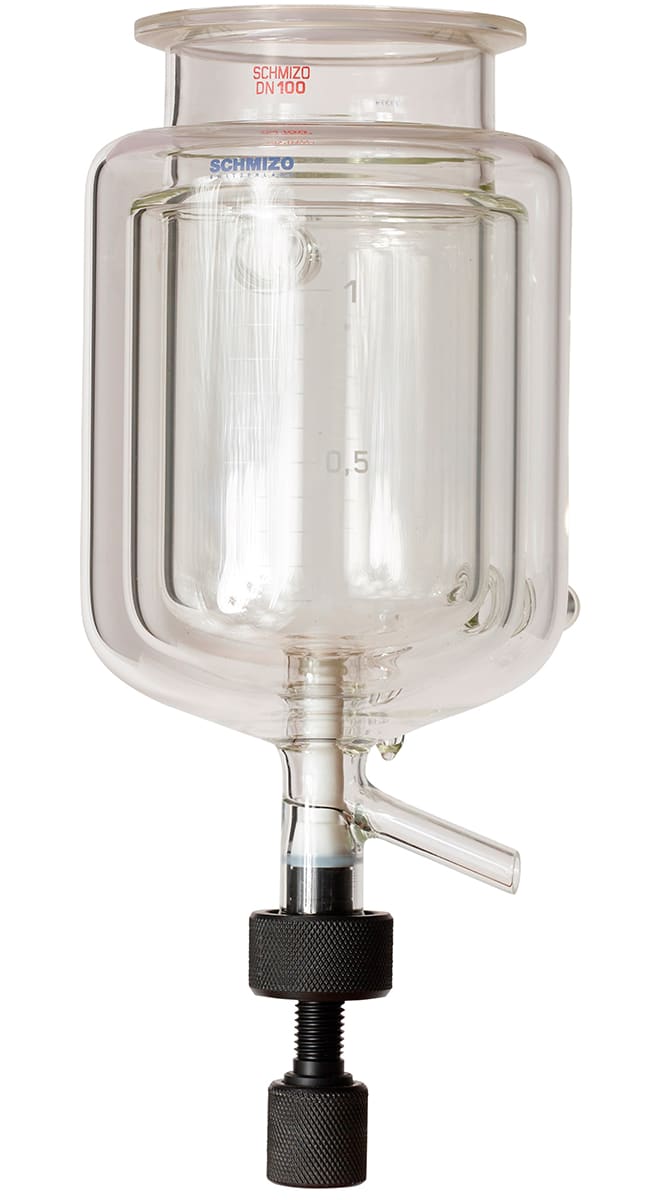

Jacketed vessel with bottom outlet
Jacketed vessel with bottom outlet

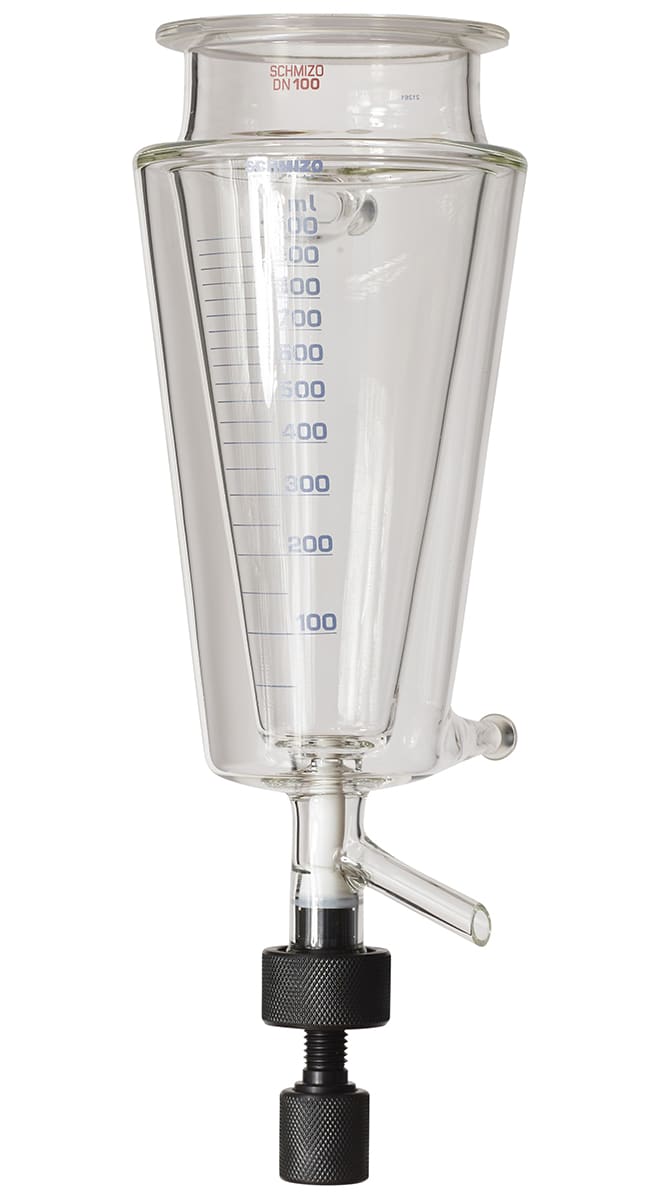

Jacketed conical vessel with bottom outlet
Jacketed conical vessel with bottom outlet

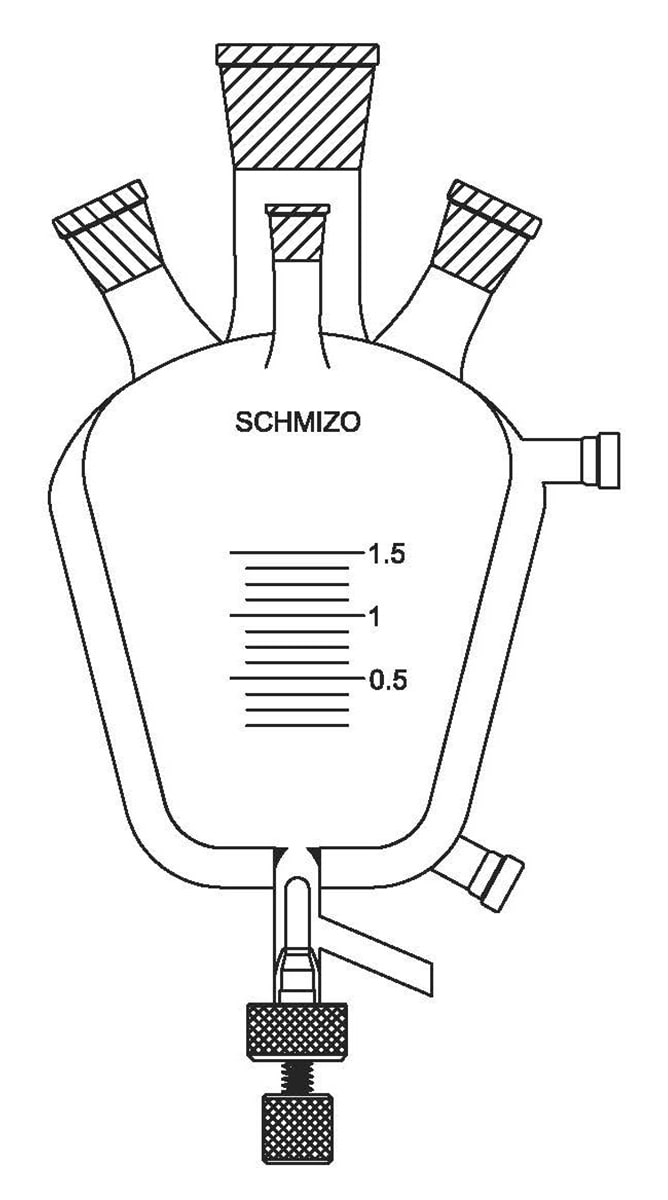

Jacketed sulphonating flask with bottom outlet
Jacketed sulphonating flask with bottom outlet
Jacketed triple wall vessel with bottom valve
Jacketed triple wall vessel with bottom valve 500 ml to 6 liter Conical version also available 500 ml to 3 liter

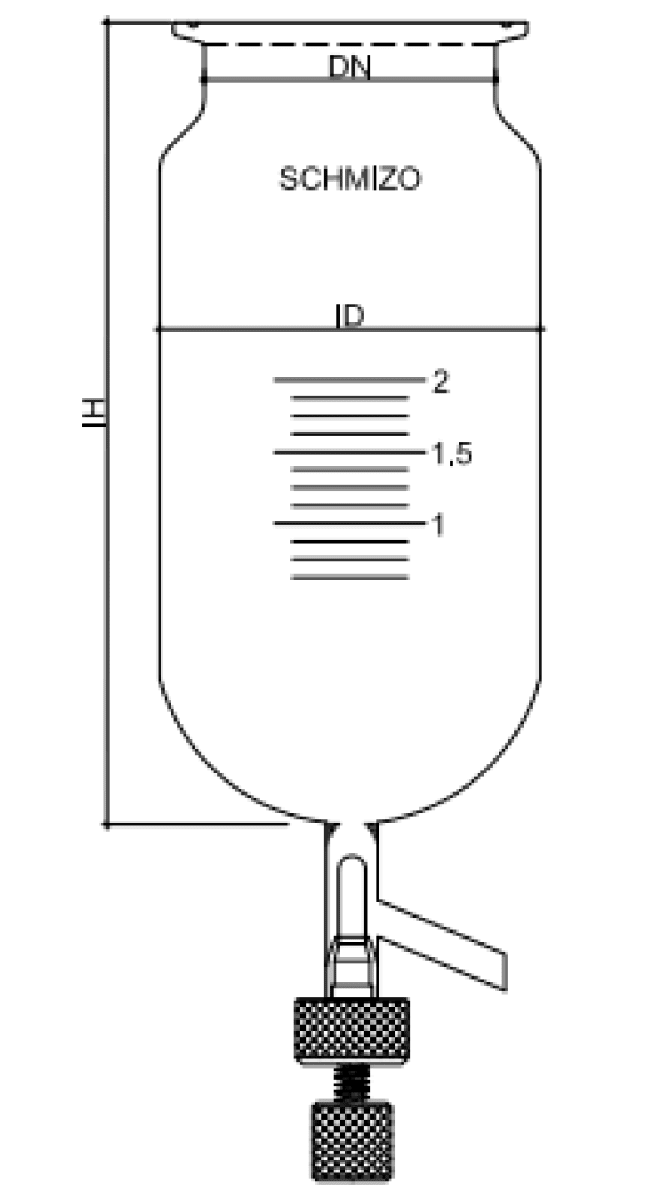

Vessel without heating jacket
Vessel without heating jacket

Examples

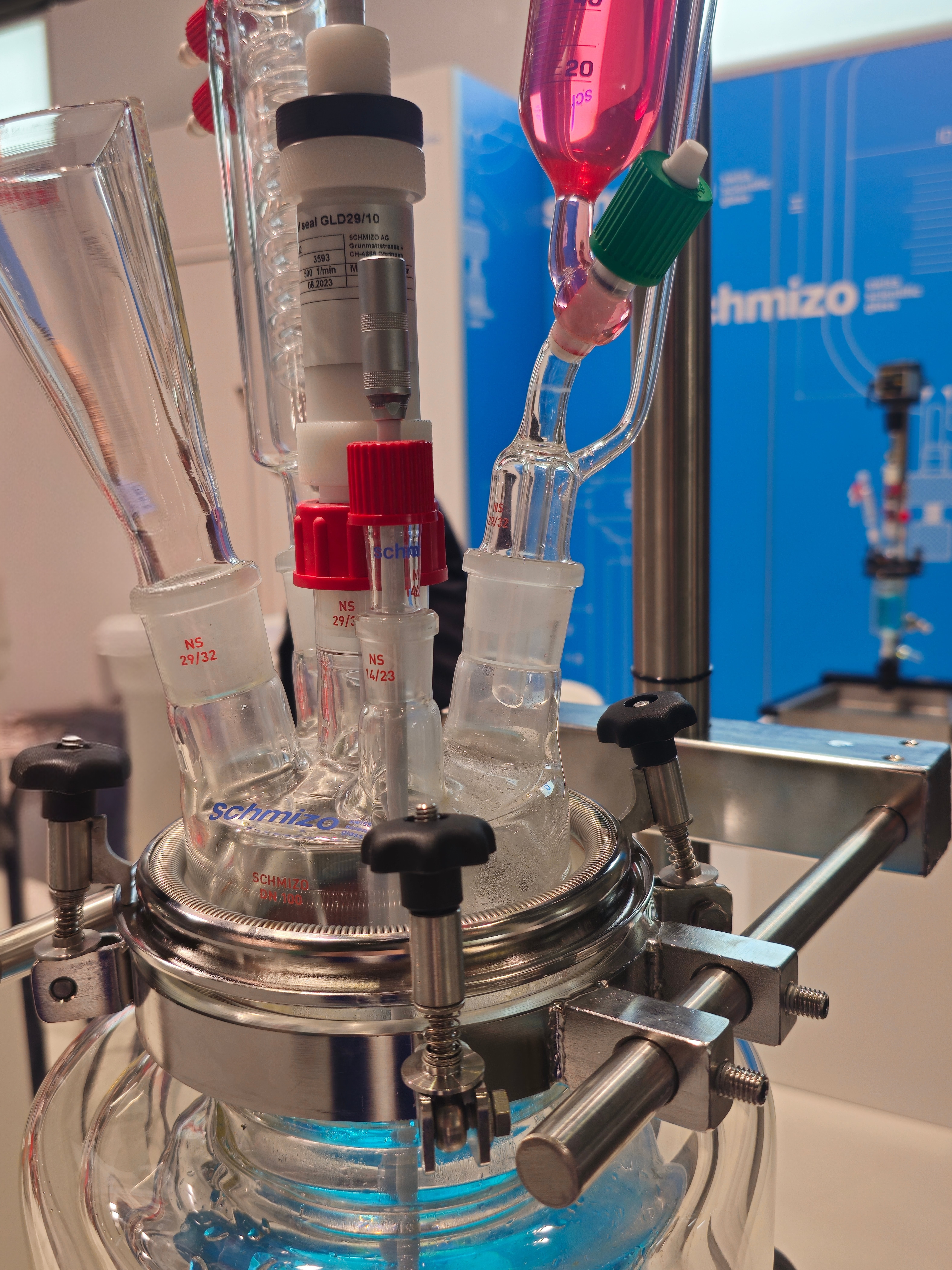

Typical reactor head configuration
Typical reactor head configuration
SCHMIZO Reactor system with 20 liter vessel, motor/stirrer, and simple distillation setup
SCHMIZO Reactor system with 20 liter vessel, motor/stirrer, and simple distillation setup

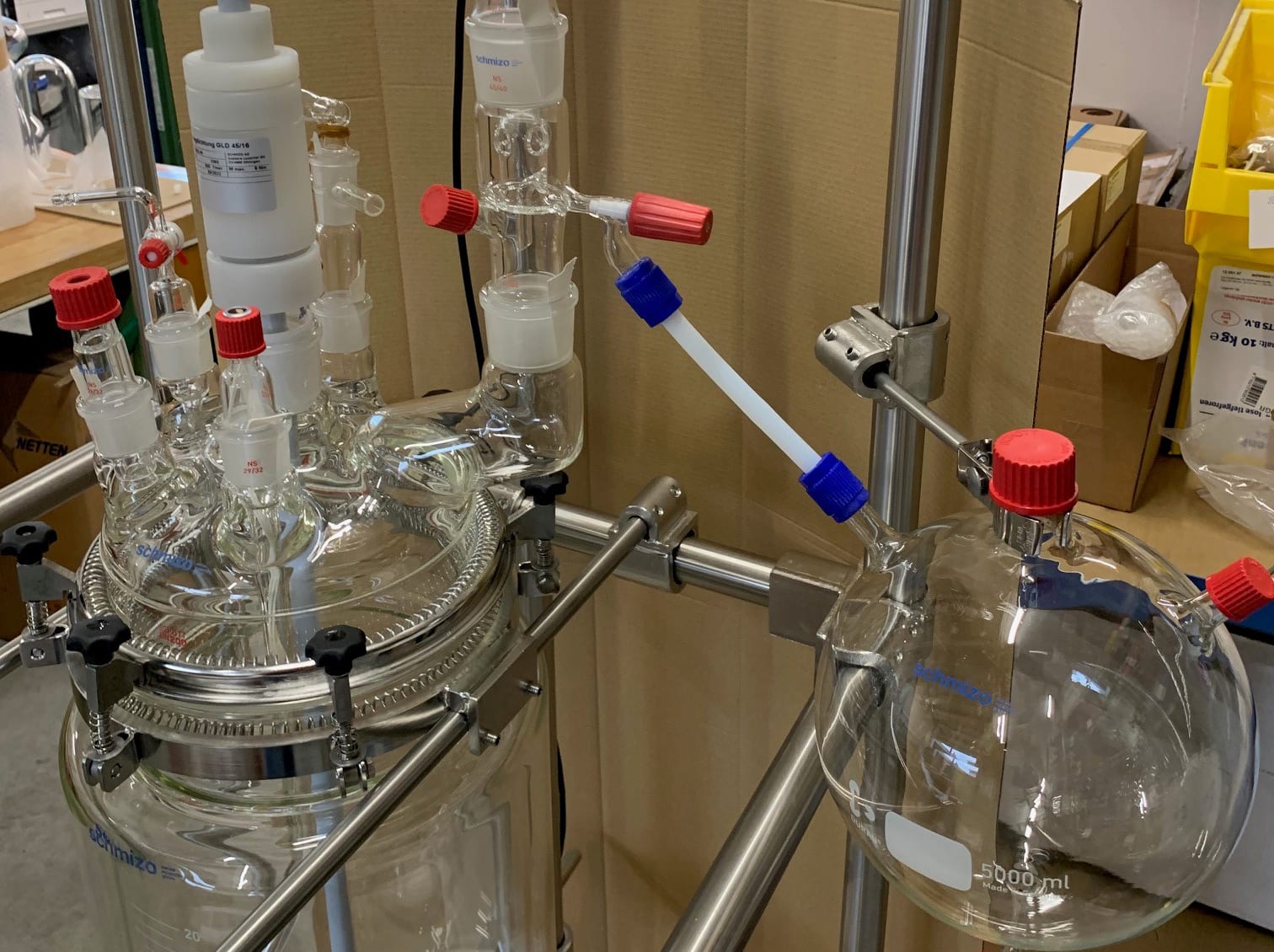

Simple distillation setup • Condenser • Reflux tubing • Receiver
Simple distillation setup • Condenser • Reflux tubing • Receiver
