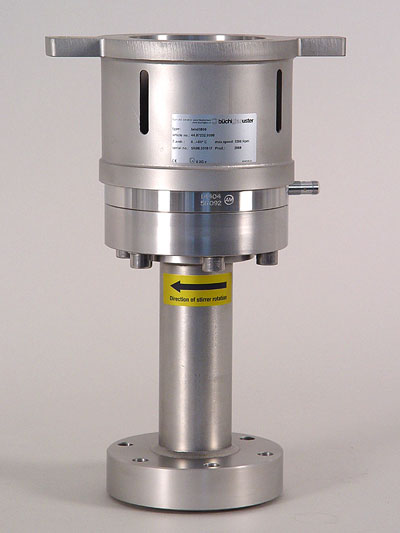

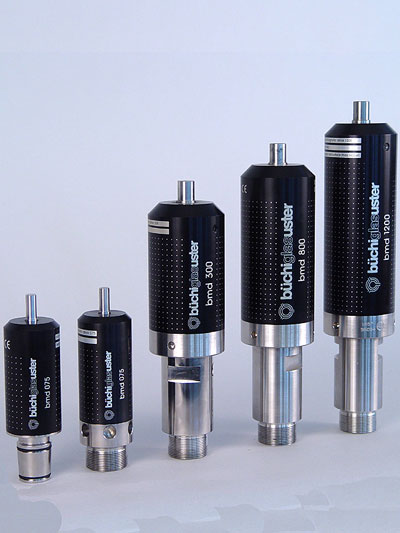

bmd 075 - 5400 magnetic couplings
Torque range: 50 - 5400 Ncm
Temperature range: -50 °C to +500 °C
Pressure range: full vacuum - 500 bar / 6000 psi
Materials: stainless steel, Hastelloy®, Tantalum, Titanium, ceramic etc.
Buchi magnetic couplings (bmd) are produced for mixing of chemicals of low to very high viscosities and under full vacuum to high pressure.

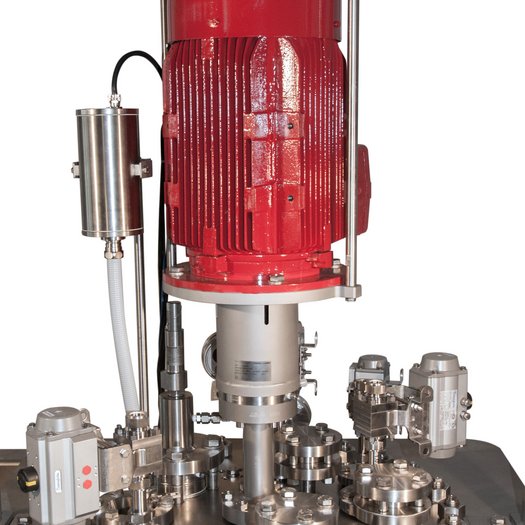

Magnetic couplings are combined with stirrer motor and speed transmission for manual speed adjustment or with frequency converter.

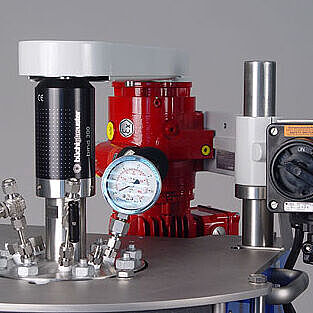

Buchi bmd magnetic couplings are available for ATEX rated area.
