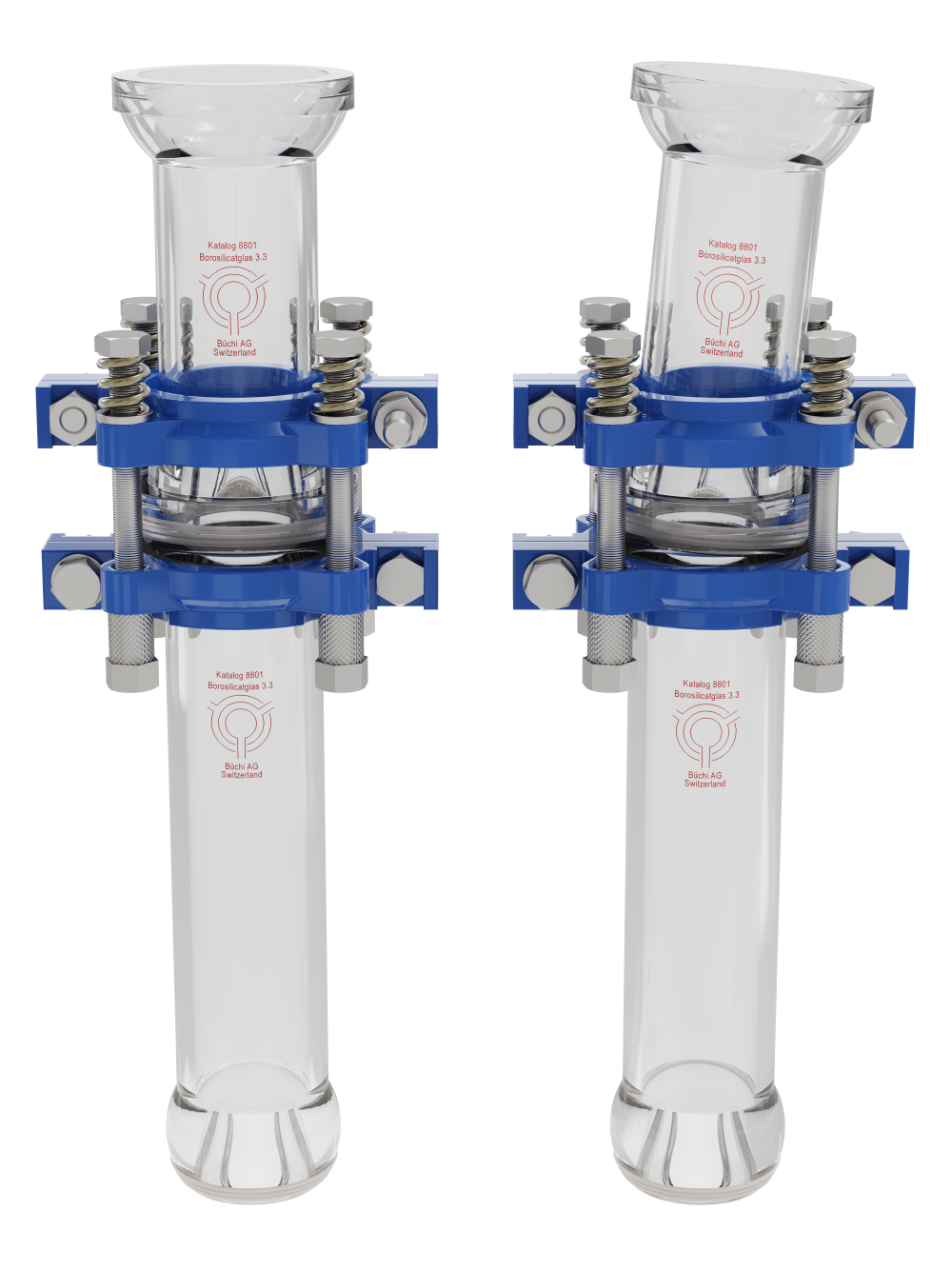

buchiflex – the unique flexible glass piping system for the chemical and pharmaceutical industry

The buchiflex flexible glass piping system is a spherical ball-and-socket glass joint with a PTFE seal. Flame-polished contact surfaces ensure residue-free operation and simplified cleaning.

Unlike static flange connections, buchiflex automatically compensates for axial and radial movement caused by temperature changes, installation tolerances, or operational loads. This self-aligning design prevents stress transfer to the glass and removes the risk of fractures.

Key design advantages that matter:

• Spring-loaded flexible connection with electrically conductive, metal flanges for proper system earthing (ATEX)
• Self-aligning spherical geometry compensates for misalignment during installation
• Absorbs mechanical and thermal stress without loading the glass
• Optional polished stainless steel flanges for cleanroom processes (i.e. for manufacturing of various HPAPIs in containment areas)

In daily equipment operations, the speed and ease of maintenance interventions directly impact productivity. buchiflex was designed with this in mind. The connection can be assembled and disassembled quickly, without special tools or complex procedures.

• Fast, effortless installation due to the self-aligning ball-socket geometry
• Easy maintenance, short service interventions minimize plant downtime
• Low operating costs over the full equipment lifecycle
• Fast and intuitive earthing of the piping system
• Easy to clean, flame-polished glass surfaces leave no residues

This makes buchiflex particularly valuable for R&D and scale-up in production campaigns, where configurations can change frequently and reconfiguration is essential.

buchiflex is not just a single component, it is the connecting core of the entire glass reactor and process equipment portfolio. Its standardized ball-socket geometry allows any Buchiglas component to be exchanged, reconfigured or scaled without redesigning the piping layout.

Practical benefits for daily operations:

• High modularity across a wide size range: DN 15 to DN 150
• Efficient planning and short delivery lead times for future custom configurations
• Reliable spare parts supply throughout the entire product lifecycle
• Self-emptying piping geometry for complete drainage without residual volumes
• Enables easy process design modifications to existing setups

For process engineers and plant operators, this modularity translates directly into shorter engineering cycles, lower capital costs and greater operational flexibility.
